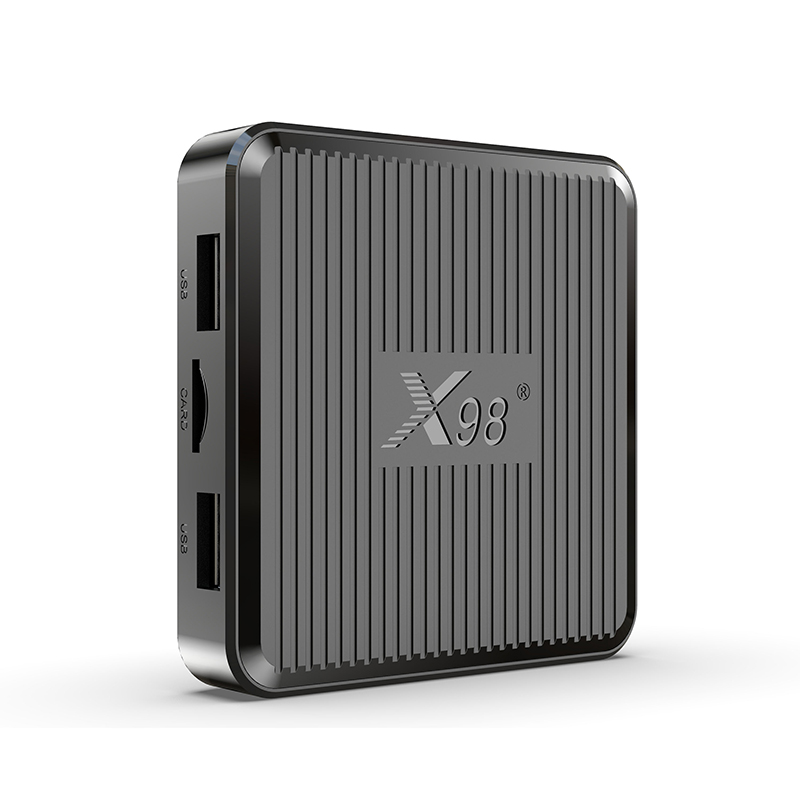

X98Q 4K TV Box

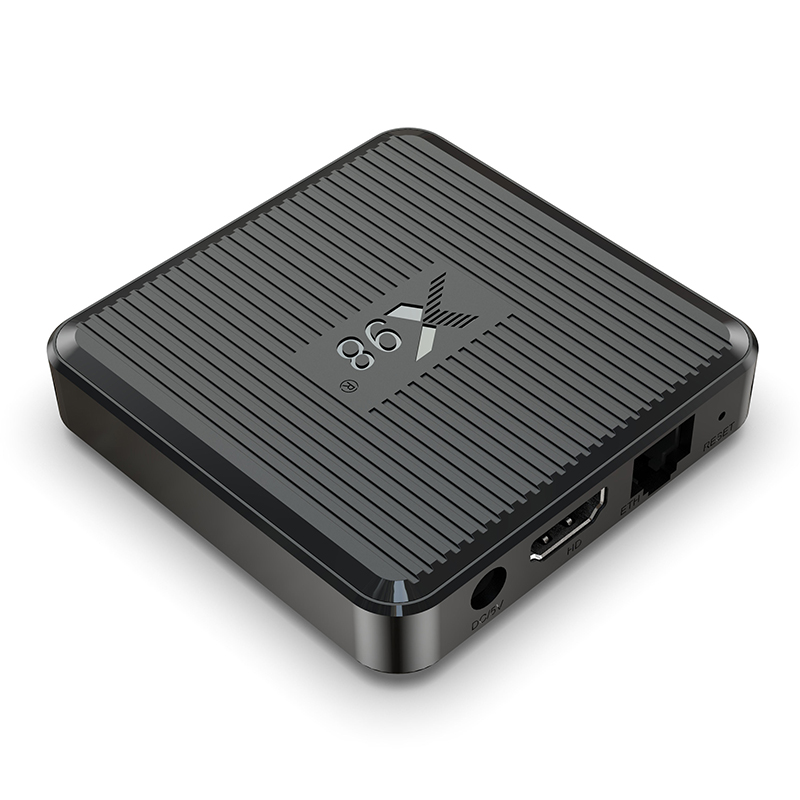

YB864 (5)

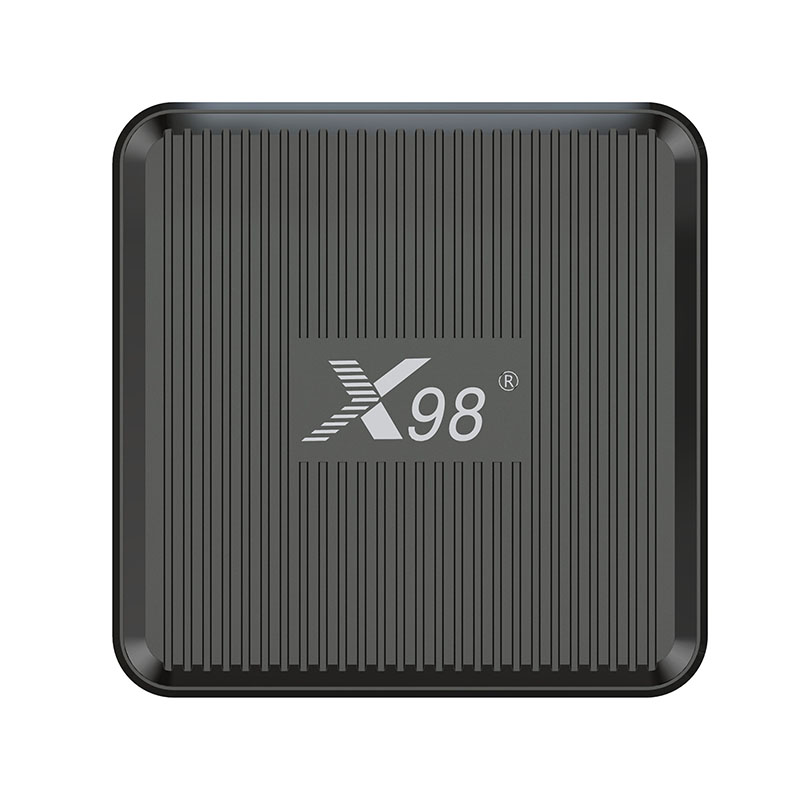

YB864 (10)

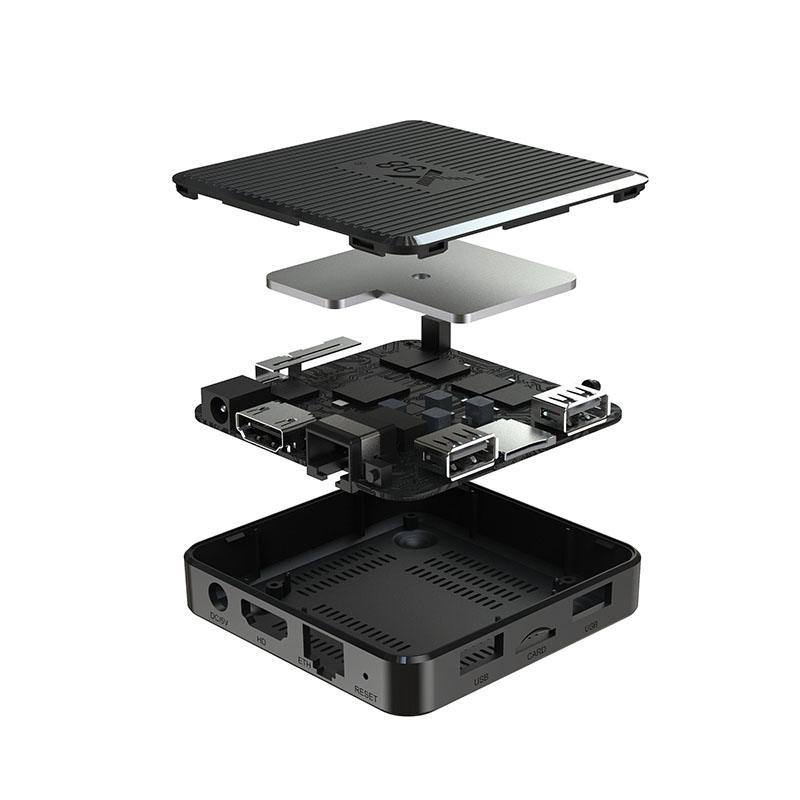

YB864 (14)

X98Q 4K TV Box with Amlogic S905W2, Android 11, and Dual-Band WiFi

The X98Q 4K TV Box features the Amlogic S905W2 quad-core Cortex-A35 CPU and Mali-G31 MP2 GPU for smooth performance. It also runs Android 11 with enhanced privacy and app compatibility. Enjoy 4K Ultra HD visuals with vibrant colors from HDR10+, and advanced decoding with H.265 and AV1, allowing for efficient, high-quality streaming on platforms like Netflix, YouTube, and Chrome.

X98Q Performance Advantages:

  • Visual and Decoding: 4K resolution with support for HDR10+, 4K2K H.265 hardware decoding, and the AV1 codec.
  • Processor and System: Powered by the Amlogic S905W2 quad-core Cortex-A35 CPU and Mali-G31 MP2 GPU, running Android 11.
  • Connectivity: Dual-band Wi-Fi (2.4G & 5.8G), supporting 802.11ac.
  • Heat Management: Multiple cooling vents ensure excellent heat dissipation and safe and reliable operation.
  • Versatility: Suitable for gaming, movie watching, music sharing, business meetings, and more.
Click to consult

Description

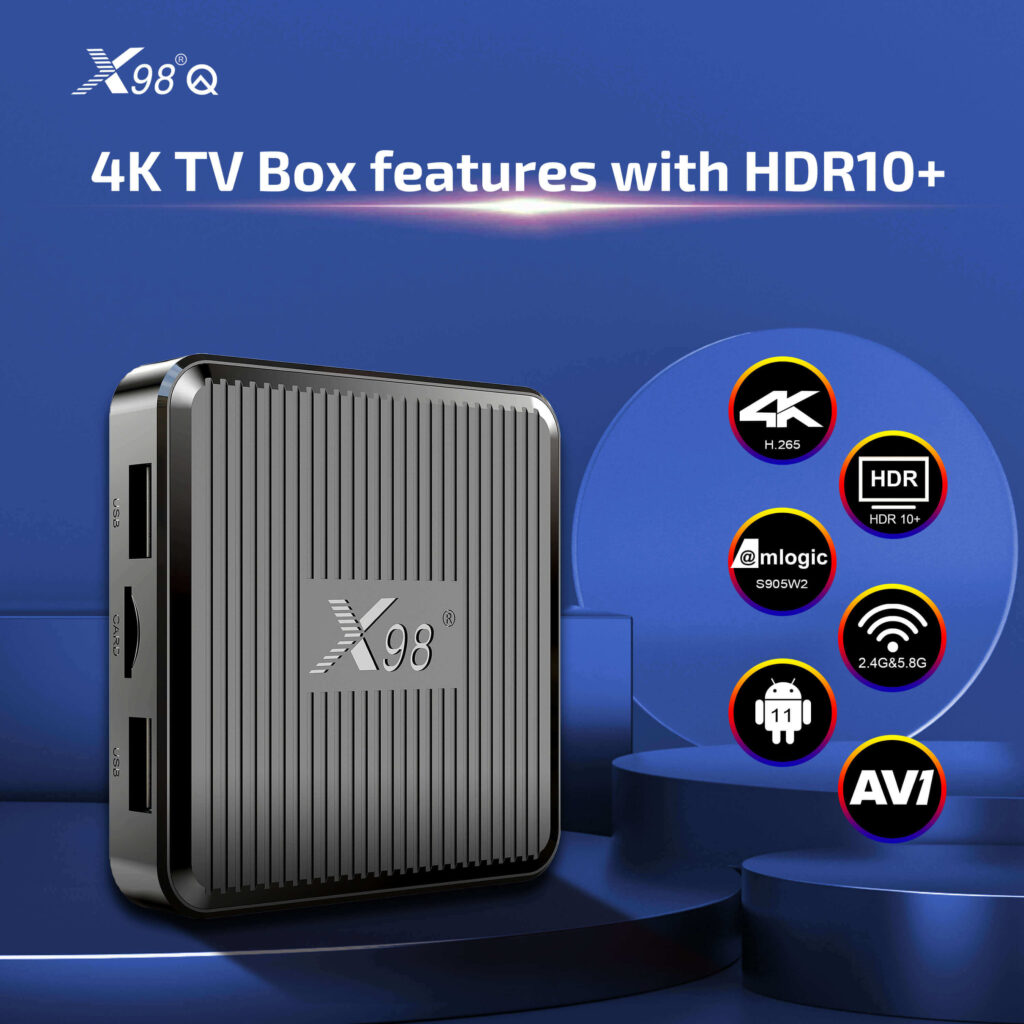

X98Q 4K TV Box with HDR10+ Technology and Key Features

The X98Q 4K TV Box features HDR10+ technology for stunning visuals, 4K H.265 decoding, an Amlogic S905W2 processor, dual-band Wi-Fi (2.4G/5.8G), Android 11, and the AV1 codec.

X98Q 4K TV Box with HDR10

Amlogic S905W2 Processor – The Power of the X98Q 4K TV Box

Powered by the Amlogic S905W2 quad-core Cortex-A35 CPU and Mali-G31 MP2 GPU, the X98Q TV Box delivers a perfect balance between power efficiency and performance, delivering a smooth media playback experience.

Amlogic S905W2 Processor

X98Q TV Box with Android 11 Technology – Enhanced Privacy and Performance

Powered by Android 11, this TV box offers the latest system features, improved app compatibility, and enhanced user privacy protections, making it ideal for streaming apps like Netflix, YouTube, and Google Play.

X98Q TV Box with Android 11 Technology

AV1 Codec for Efficient 4K Streaming

Also, it supports the AV1 codec (20-30% more efficient than VP9/H.265), enabling smooth 4K streaming from platforms like Netflix, Chrome, Google Play, and YouTube.

AV1 Codec for Efficient 4K Streaming

4K HDR10+ Technology for a Lifelike Viewing Experience

The X98Q 4K HDR10 TV Box features HDR10+ technology, delivering 4K Ultra HD picture quality and supporting 4K processing at up to 60fps, delivering an immersive, cinematic viewing experience.

4K HDR10+ Technology for a Lifelike Viewing Experience

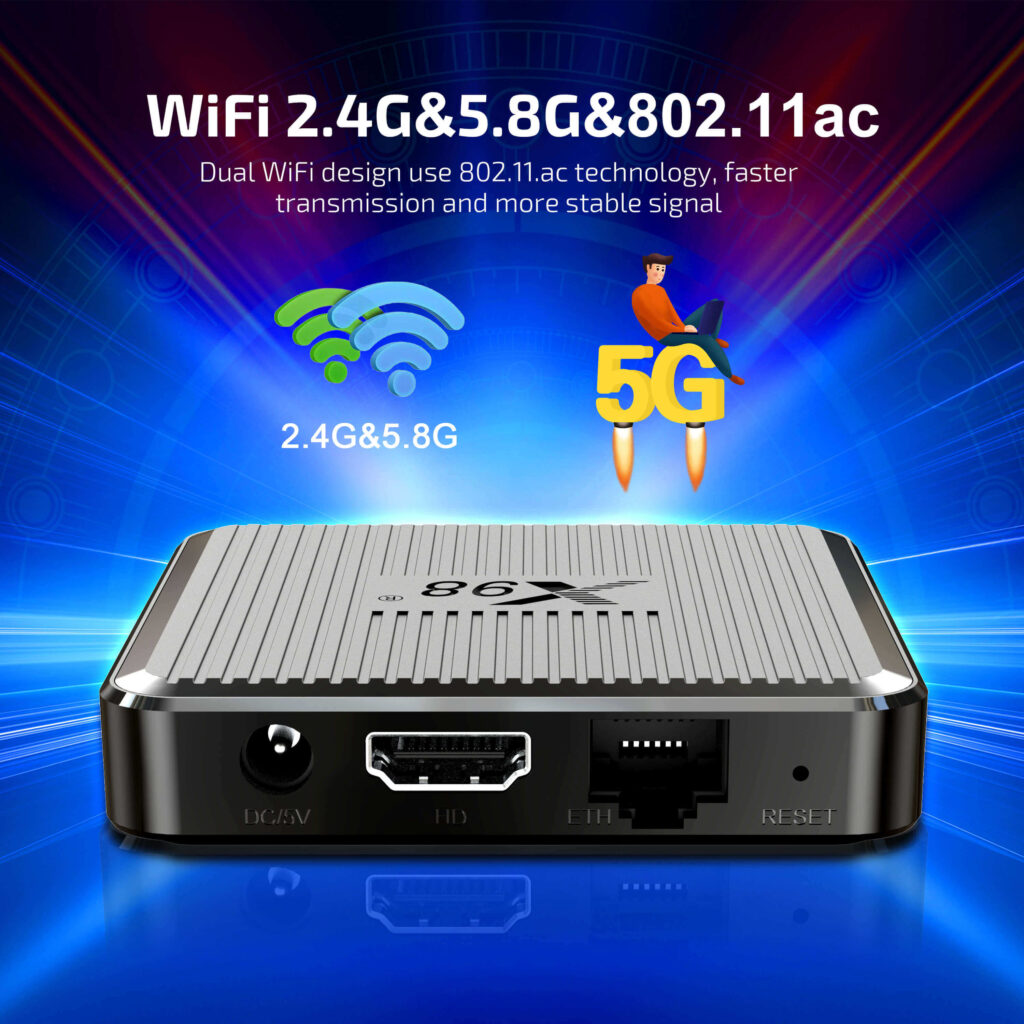

Dual-band WiFi (2.4G/5.8G) for fast and stable connections

Equipped with 802.11ac dual-band WiFi (2.4G and 5.8G), it ensures faster transmission speeds and a more stable wireless signal for smooth streaming.

Dual-band WiFi (2.4G5.8G) for fast and stable connections

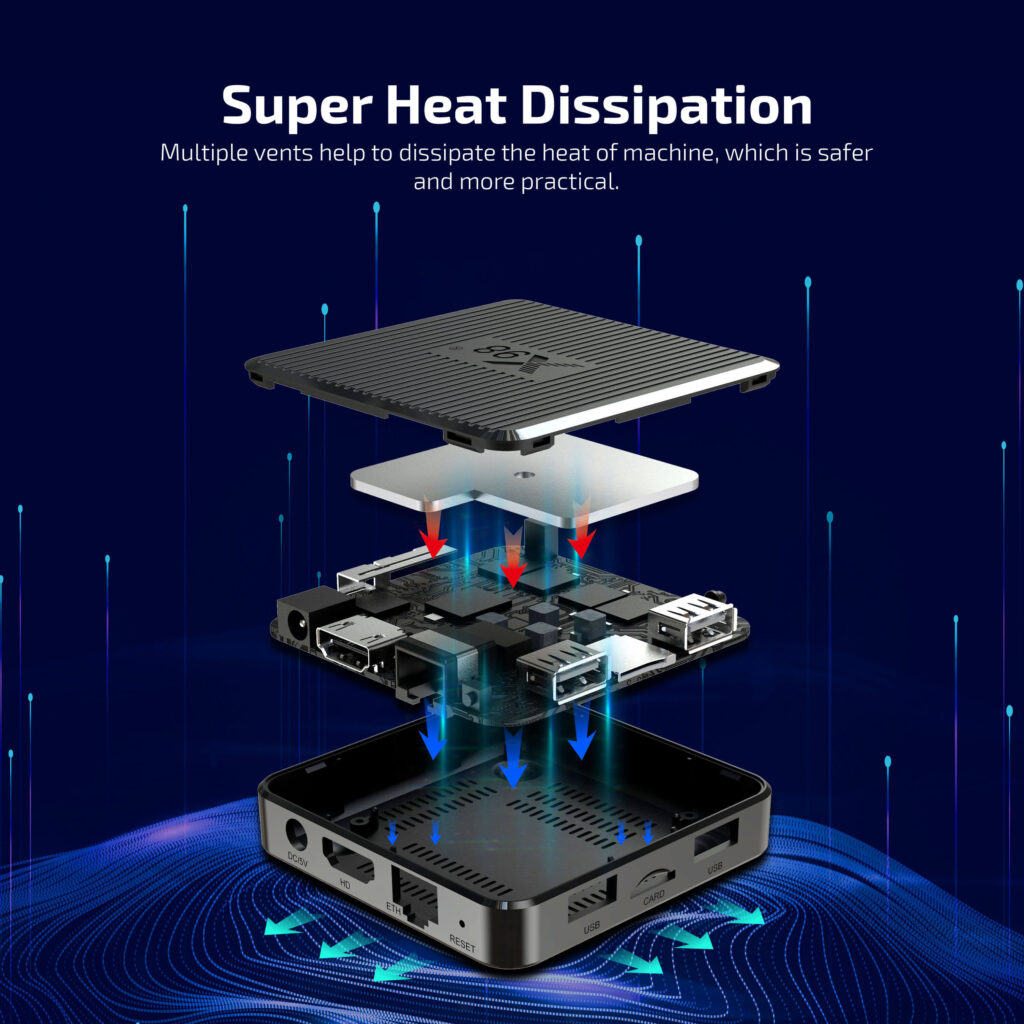

Superior Heat Dissipation—Safe and Practical

This TV box features a multi-layer heat dissipation design for effective heat dissipation, keeping the device cool and ensuring safe and reliable operation even under intense use.

Superior Heat Dissipation

Application Scenarios—Gaming, Movies, Music, Meetings

This outstanding performance makes it a favorite among users in a variety of scenarios, including gaming, movie watching, music sharing, and work meetings.

Application Scenarios

Specifications

X98Q 4K TV Box Specifications

Product Model X98Q Project Status M.P
Basic parameters
CPU Chipset S905W2
Architecture Quad Core ARM Cortex A35
GPU Chipset Mali-G31 MP2
Architecture OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support
RAM Capacity 2GB   (1/2GB Optional)
ROM Capacity 16GB  (8/16GB Optional)
External storage USB Storage Devices Supported
Micro SD card Supported
Software
Operating system OS Version Android 11
Language Multi-Language
Multimedia Video Video Decoder:
AV1     MP-10@L5.1 up to 4Kx2K@60fps
VP9 Profile-2 up to 4Kx2K@60fps
H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
H.264 AVC HP@L5.1 up to 4Kx2K@30fps
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
WMV/VC-1 SP/MP/AP up to 1080P@60fps
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
Supports JPEG thumbnail, scaling, rotation and transition effects
Multiple language and multiple format sub-title video support
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC
Image HD JPEG、BMP、GIF、PNG、TIF
Network service
Wi-Fi Type Option Support WiFi: IEEE 802.11 b / g / n or IEEE 802.11 a/b/g/n/ac
Frequency Option:2.4G &5G
Antenna Type Inside antennas
Bluetooth Bluetooth Option
Interface
Charge DC connector DC IN(5V/2A)
Video output HDMI 4K*2K UHD Output, HDMI 2.1
Micro SD External memory Support
USB port USB host 2*USB 2.0
Ethernet Ethernet 100M Ethernet
Appearance
Body Material Plastic
Color Black
Size 77X77X16(mm)
Weight 0.090Kg
Cerifications(For Unit)
Standard CE /
RoHS /
Others Optional /
Package contents   Shipping Info
User manual *1 Gift Box Dimension(mm) 155x100x55mm
Gift Box *1 Carton Size(mm) 570x315x172MM
Remote control *1 Qty Per Carton(pcs) 40PCS
HD external cable *1 Gift Box.G.W(gs) 0.298Kg
Power adapter *1 Export carton (G.W.)(kgs) 12.9Kg
