ZKS700 Intel Ultra 7 Mini PC – Dual USB 4 ports, Quad 8K Displays, and High Performance

The ZKS700 Intel Ultra 7 mini PC, with a turbo frequency of up to 4.8GHz, 16/22 cores/threads, and Intel Arc graphics, delivers smooth gaming, rendering, and office tasks. It also features dual USB 4 ports for ultra-fast large file transfers, and a dual cooling system (VC heatsink + full copper structure + hard drive fan) ensures stable performance. Enjoy quad-display functionality (4K@60Hz multi-display and 8K@60Hz output) for enhanced work efficiency and entertainment.

Intel Ultra 7 mini PC Performance Advantages:

  • Ports: Dual USB 4 ports support ultra-fast large file transfers.
  • Cooling: Dual cooling system with VC cooling modules, all-copper heat sink architecture, and hard drive fans.
  • Display: Supports quad-display output for enhanced work and entertainment efficiency.
  • Performance: Intel Xeon 7 processor with Intel Arc Graphics for powerful performance and low power consumption.
  • Other features: Fingerprint unlocking, LCD real-time parameter display, WiFi 6E/BT 5.3, DDR5 memory, dual M.2 PCIe 4.0 SSD slots, and RGB lighting.

Description

Intel Ultra 7 Processor – The Core of a High-Performance, Low-Power Mini PC

The ZKS700 Intel Ultra 7 mini PC is equipped with an Intel Ultra 7 processor (up to 4.8GHz turbo frequency, 16/22 cores/threads) and Intel Arc Graphics (supporting ray tracing and AV1 codec), delivering exceptional performance in gaming, rendering, and productivity.

The Core of a High-Performance, Low-Power Mini PC

The ZKS700 Intel Ultra 7 mini PC combines performance, expandability, and personalization.

This Intel Ultra 7 mini PC features dual cooling modules, fingerprint unlocking, an LCD display, 8K multi-screen support, dual USB 4 ports, WiFi 6E/Bluetooth 5.3, DDR5 memory, dual M.2 SSD slots, and RGB lighting, offering a perfect balance of performance, security, expandability, and personalization.

The ZKS700 Intel Ultra 7 mini PC combines performance, expandability, and personalization.

Mini PC with 4K/8K Multi-Display Output for Enhanced Work and Entertainment Efficiency

Supports quad-display and single or quad-display 4K HD output (including 8K@60Hz), significantly improving work efficiency and meeting multitasking and entertainment needs.

Mini PC with 4K8K Multi-Display Output for Enhanced Work and Entertainment Efficiency

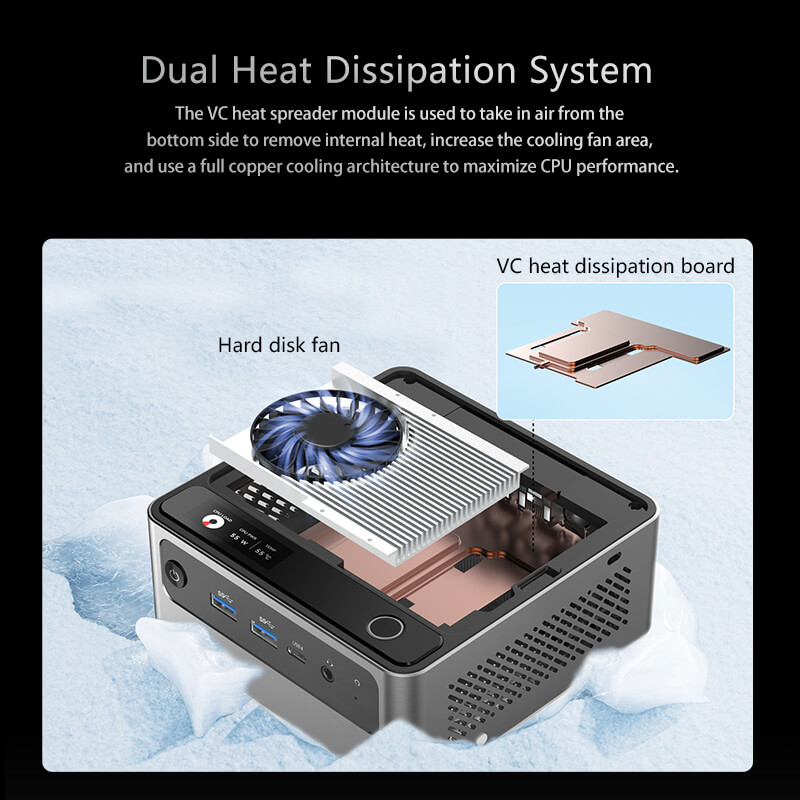

Dual Cooling System – VC Heatsink + All-Copper Frame

The dual cooling system, featuring a VC heatsink module, increased cooling fan area, and an all-copper heatsink structure, maximizes CPU performance and ensures stable operation.

VC Heatsink + All-Copper Frame

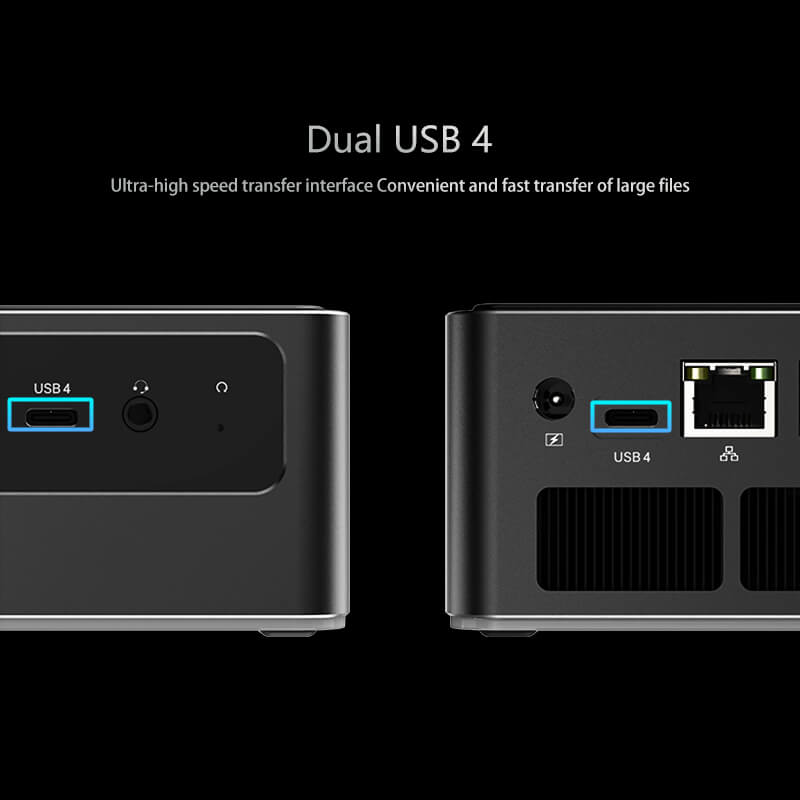

Dual USB 4 Ports – Ultra-High-Speed ​​Large File Transfers

This mini PC features dual USB 4 ports, supporting ultra-high-speed large file transfers and enabling efficient data exchange.

Ultra-High-Speed ​​Large File Transfers

Specifications

ZKS700 Intel Ultra 7 mini PC Specifications

ZKS700 MINI PC
CPU Processor Type Intel® Core™ Ultra 7 155H
P-core up to 4.8 GHz
E-core up to 3.8 GHz
optional  125H/135H/165H/
Lithography Intel 4
Cache 24 MB Intel® Smart Cache
Processor Graphics Intel® Arc™ graphics UP TO  2.25GHz
NPU Intel® AI Boost
Memory Memory Types DDR5   SO-DIMM *2
Memory size Up to   DDR5 96G 5600Mhz  optional  8G/16G/32G/64
Disk M.2 2  (M.2 2280 SATA / NVME PCIE4.0×4)
SATA N/A
Display LCD 1.9″, TFT  170*RGB*320
touch panel N/A
Wireless LAN WIFI WiFi6E  AX211 2.4G/5G/6G,802.11ac/a/b/g/n/ax
Bluetooth BT5.3
I/O USB2.0 2
USB3.2 GEN2 2
LAN  RJ45 2    (2500M/1000M/100M/10M) I226-v
HDMI v 2.1 TMDS 1    (4K @ 60Hz)
TYPE-C 2    (4K@ 60Hz) USB4(DP/DATA)
DP2.1 1    (8K @ 60Hz)
LED ambient light ambient light(multiple color options)
Audio Audio Jack*3.5mm 1
PXE support YES
Hot Keys Breathing lamp regulation Support
Fingerprint Support
Power Button 1
Reset hole Support
FAN Smart Fan Support
Power Power input 19V/6.32A  DC  5.5-2.5mm
Physical Characteristics Dimension(L x W x H) 130.0*128.5*53.5mm
Weight(g) ≈700g
Software Support OS Window10 / window11 / ubuntu / Linux
  WHQL/CTS
