CPU: Intel, Corei3/i5/i7 Haswell/Broadwell-U series 4th/5th generation processors
Memory: 2* DDR3L memory slots, supporting up to 16GB
Hard disk: 1 * standard SATA3.0 hard disk interface.
Graphics card: integrated with Intel ® Core Graphics HD Series Display Core
Network: 2 * Realtek RTL111H Gigabit Ethernet card, supports Wake on LAN/PCIe
Expand: 1 * Mini PCIe slot to support WIFI/4G modules
Audio: Realtek ALC chip
Display interface: HDMI/VGA
OS supports: Win7/Win8/WIN10/Linux, etc
Other supports: power on, timed power on, network wake-up, and diskless startup
Interface: 4 * USB 3.0, 4 * USB 2.0, power interface, 2 * LAN, audio interface, 2 * WiFi, GPIO, SIM, PS/2,6 * COM
Physical dimensions: 235*155*50MM
Installation methods: desktop, wall mounted, embedded
Working temperature: 0-70°C
Chassis color: black (customizable in large quantities）
power supply: External power adapter, input/output DC 19V/12V

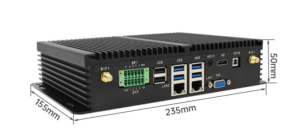

Full aluminum alloy casing, fanless cooling
Compact size, sturdy structure, flexible installation.

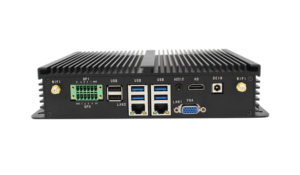

Integrated Intel® Core™ i3/i5/i7 generation processors
Supports diskless boot/Power-on/Wake-on-LAN/Timed power on/off.

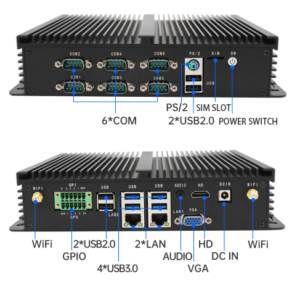

Supports 8 USB ports, HDMI, GPIO, SIM, and 6×COM
Supports Wi-Fi, 4G module, and expandable 2.5-inch HDD.

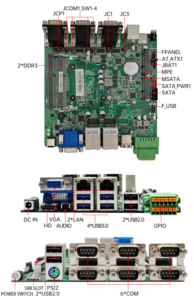

ZKYD8 Dual Ethernet & 6 COM Ports – Interface Dimensions.
