Product

ZKYJ6-J6426

Processor: J6426 quad-core 4-thread processor
Memory: 1×DDR4 memory slot, supports up to 32GB
Storage: 1×NVME M.2 SSD interface, 1×MSATA SSD interface, 1×SATA 2.5″ HDD interface
Graphics: Integrated Intel® UHD Graphics
Network: 4×Intel i225/i226 2.5G Ethernet ports, 1×M.2 WiFi interface
Display Interfaces: HDMI, DP (supports synchronous/asynchronous display)

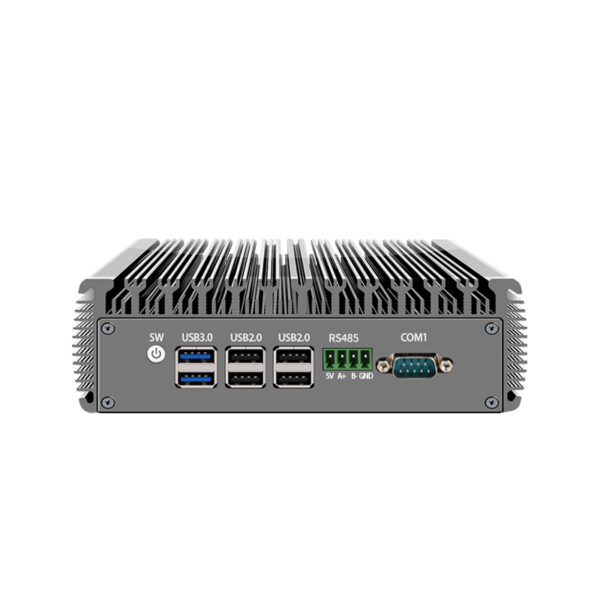

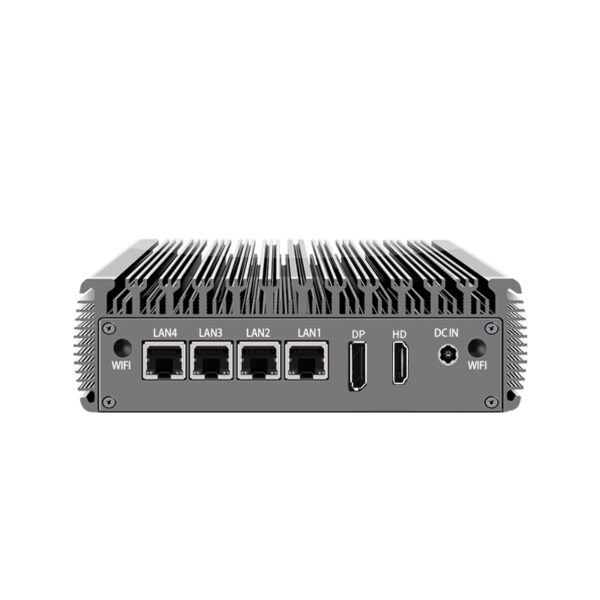

Other Interfaces: 2×USB 3.0，4×USB 2.0，Power connector，4×LAN ports，2×WiFi antenna connectors，1×COM，1×COM
OS Support: Windows 10/11/Linux
BIOS Supports: power-on auto boot

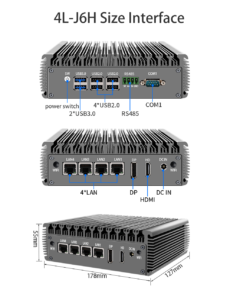

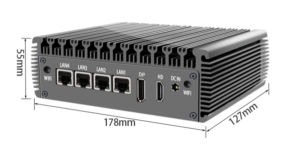

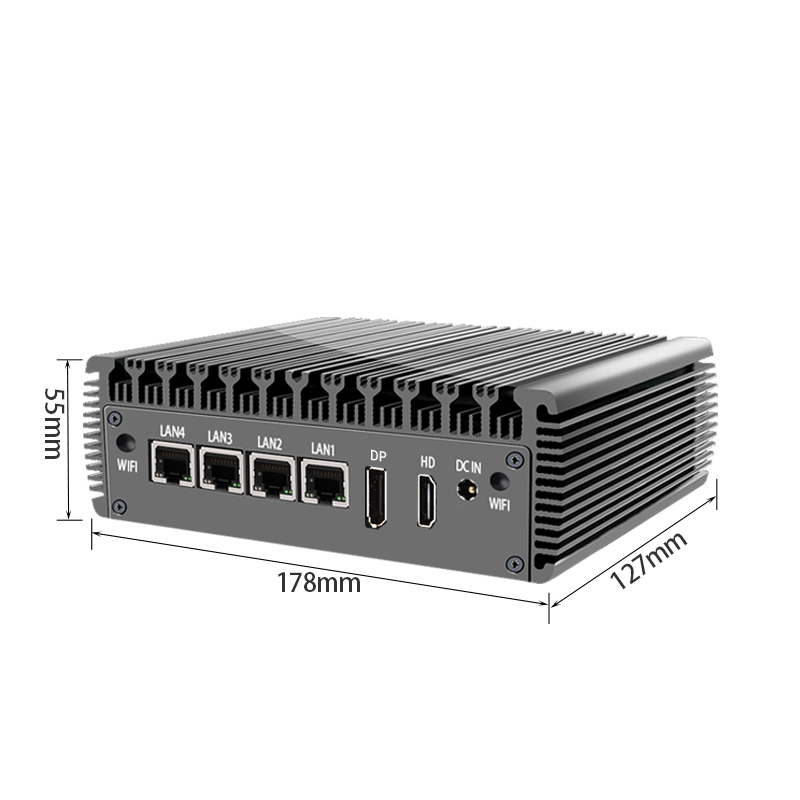

Dimensions: 178*127*55mm
Mounting Options: Desktop/Wall-mount/Embedded
Operating Temperature: -20°~60°C
Chassis Color: Silver (customizable for bulk orders)
Power Supply: External power adapter，Input: AC 110V-220V，Output: DC 12V

Description

Description

Intel® Pentium® J-Series Processor
Supports HDMI + DP (synchronous/asynchronous display).

Intel onboard 2.5G Ethernet LAN
Fanless silent aluminum chassis cooling.

DDR4 SO-DIMM single channel, max. 32GB
Dual SSD interfaces: NVMe M.2 + mSATA； Dimensions: 178 × 127 × 55mm.

Power-On Auto-Start Setup Method:
Press the Delete key immediately during startup to enter the BIOS setup.
1. Chipset
2. 2.PCH-l0 Configuration
3. 3. State After G3
Change the setting from “Always Off” to “Always On”,Press F10 to save and exit.
