AI Mini PC ZKF3A with Intel Ultra 7 155H, DDR5, PCIe 4.0 SSD, Efficient Cooling

Powered by the Intel Ultra 7 155H processor (16 cores, 22 threads, up to 4.8GHz), the AI ​​Mini PC ZKF3A redefines intelligent computing, delivering AI-enhanced performance for multitasking, gaming, and professional workflows. It also features DDR5 memory and a PCIe 4.0 SSD for blazing-fast speeds, and a dual cooling system ensures stability under high loads. This AI mini PC runs Windows 11, providing excellent performance for office, gaming, and entertainment.

AI ​​Mini PC ZKF3A Performance Advantages:

  • Processor: Intel Meteor Lake Ultra 7 155H, equipped with advanced AI features.
  • Performance and Memory: DDR5 memory + PCIe 4.0 SSD, pre-installed with Windows 11.
  • Cooling: Efficient dual heat pipes + dual airflow system for stable performance.
  • Appearance: Four RGB lighting modes for a customizable desktop atmosphere.
  • Ports: A wide range of connectivity options, including USB, Type-C, HDMI, DisplayPort, LAN, and audio.
  • Design and Utility: Compact form factor, suitable for office work, gaming, entertainment, and multi-purpose intelligent tasks.

Description

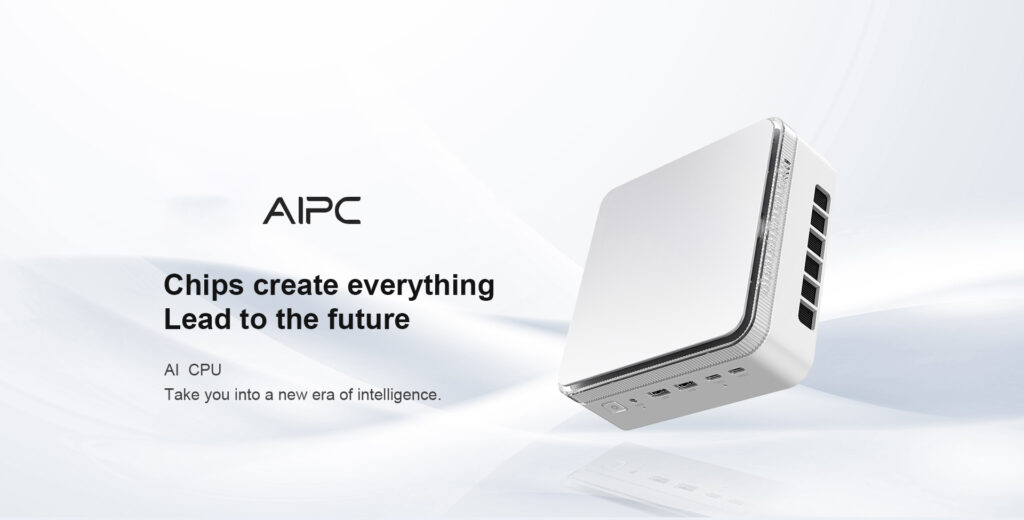

AI Mini PC ZKF3A – Future Intelligent Computing Powered by Intel

This AI Mini PC, featuring an Intel architecture-based AI-optimized CPU, is designed for next-generation tasks and innovation, ushering in a new era of intelligent computing.

Future Intelligent Computing Powered by Intel

Intel Meteor Lake, RGB Lighting, DDR5, and Windows 11

Highlights of this mini PC include an Intel Meteor Lake CPU, customizable RGB lighting, DDR5 memory, a PCIe 4.0 SSD, extensive connectivity, an advanced cooling system, and the Windows 11 operating system, providing users with a more intelligent experience.

Intel Meteor Lake, RGB Lighting, DDR5, and Windows 11

Intel Ultra 7 155H Processor – 16-Core AI-Enhanced Performance

As an Intel Performance Core Mini PC, this AI PC is not only equipped with the Intel Ultra 7 155H processor (16 cores, 22 threads, up to 4.8GHz), but also delivers exceptional single-core and multi-core performance, leading the way in AI-driven computing and multitasking.

16-Core AI-Enhanced Performance

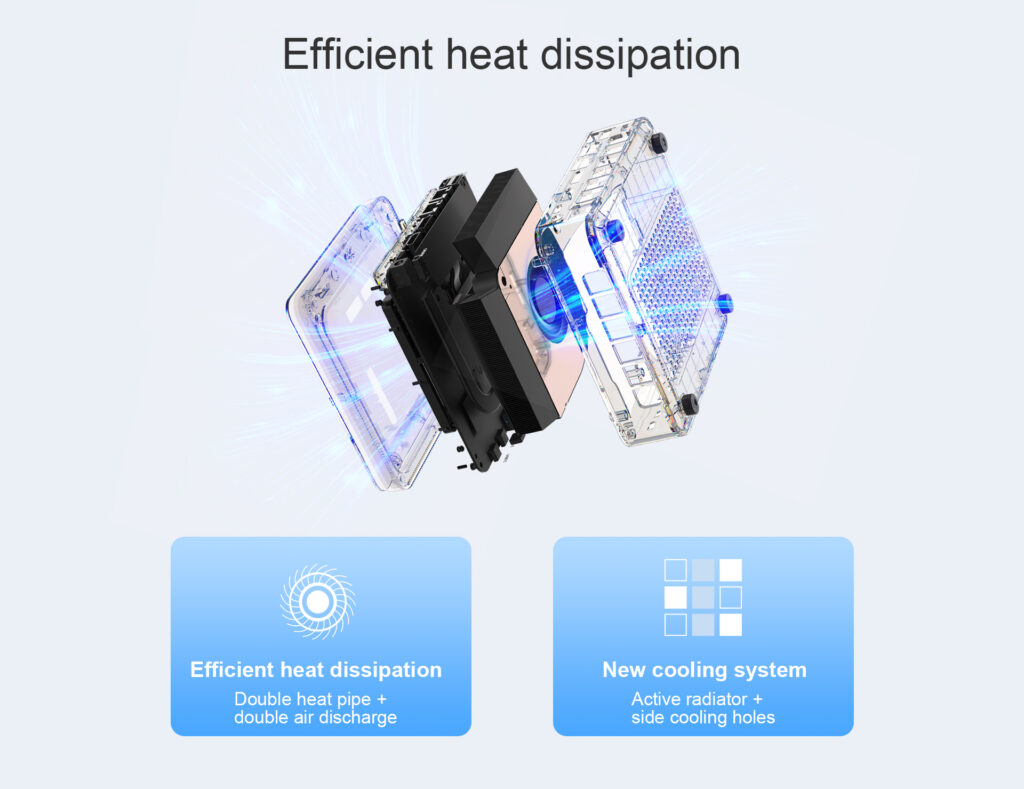

Efficient Cooling System with Dual Heatpipes and Active Radiator

The AI ​​Mini PC ZKF3A’s cooling system combines dual heatpipes, dual air vents, an active radiator, and side vents to ensure stable performance even during intense tasks.

Efficient Cooling System with Dual Heatpipes and Active Radiator

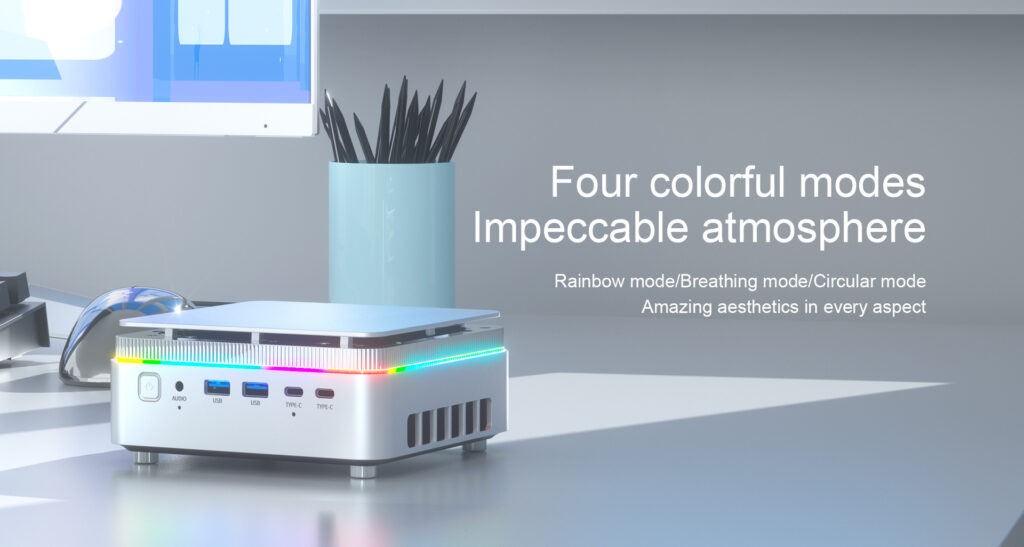

RGB Lighting Modes – Four Customizable Color Profiles for the AI ​​PC

Offering four RGB lighting modes, you can personalize your desktop and create a vibrant, immersive atmosphere.

Four Customizable Color Profiles for the AI ​​PC

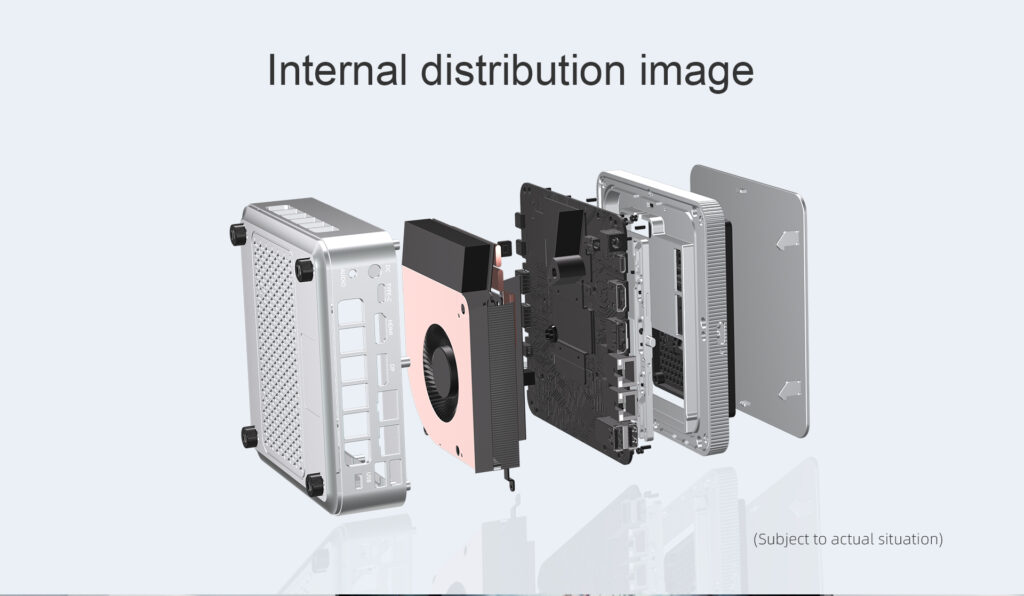

Internal Layout – Optimized Hardware Layout for Enhanced Performance

The AI ​​PC’s internal layout features a meticulous hardware layout to ensure efficient heat dissipation and compatibility, resulting in long-term reliable performance.

Optimized Hardware Layout for Enhanced Performance

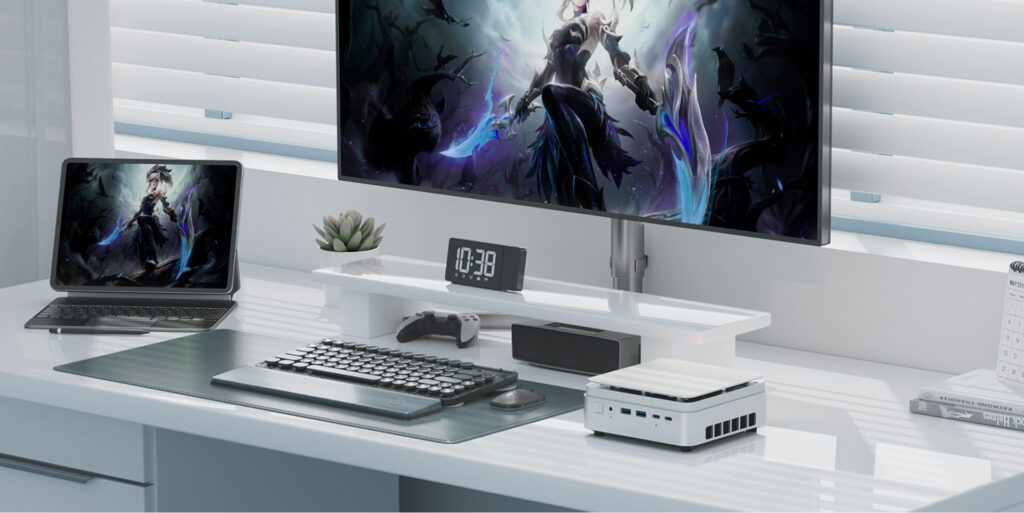

Multi-Scenario Applications – Office, Gaming, and Entertainment Center

With its compact design and powerful hardware, it seamlessly fits into a variety of scenarios, from office work and gaming to home entertainment.

Office, Gaming, and Entertainment Hub

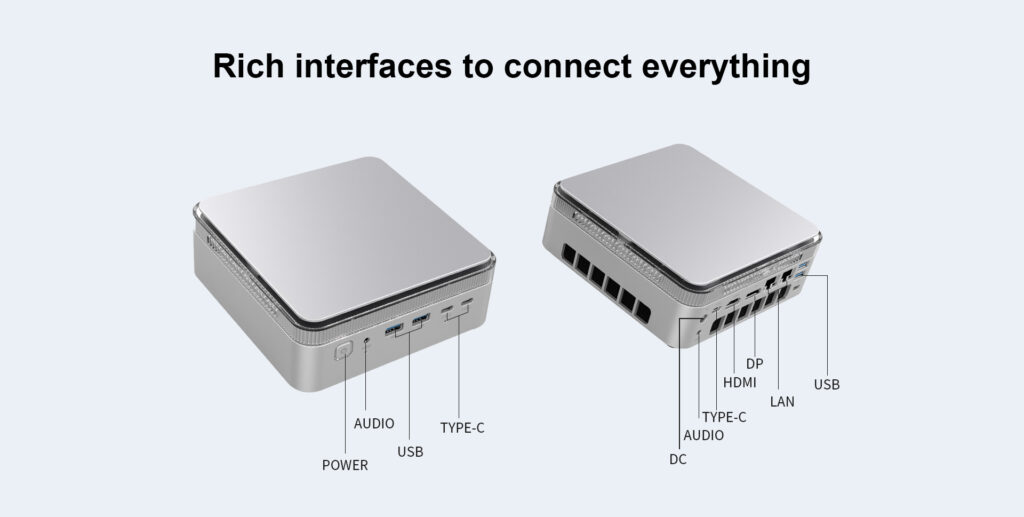

Extensive Ports for Easily Connecting All Your Peripherals and Devices

Equipped with USB, Type-C, HDMI, DisplayPort, LAN, and audio ports, it provides comprehensive connectivity for displays, peripherals, and networking, supporting diverse usage scenarios.

Extensive Ports for Easily Connecting All Your Peripherals and Devices

Specifications

AI ​​Mini PC ZKF3A Specifications

Product Appearance
Type Spec. Standard Configuration Optional
Product Product Type MINI PC
Special /
Dimension 123.5mm*123.5mm*56mm
Case Material Plastic + Metal
Weight
System Hardware Configuration
Type Spec. Standard Configuration Optional
CPU Model Meteor lake Ultra 5 / 7
manufacturing process Intel 4(7nm)
core 14 cores and 18 threads
cache 18 MB Intel® Smart Cache
base speed 3.6 GHz
Maximum speed 4.5 GHz
power wastage 65 W
GPU Model Intel® Arc™ graphics
core /
speed 2.2 GHz
resolution 4096 x 2304 @ 60Hz
Memory Model 2*SODIMM DDR5
speed 5600 MT/s
Capacity Up to 96 GB
Storage SSD Capacity SSD(Up to 2TB)
SSD Type NVME*2
2.5 inch HHD NO
TF card NO
RTC BIOS Support Real-time clock, timed power-up
power-on BIOS Support Supports automatic power-on after power-on
diskless network BIOS Support Support uefi diskless boot
TPM CPU Integrated TPM Supports TPM 2.0
multi-screen video output Support HDMI*1+DP*1+type_c*1+Thunderbolt 4*2 under system
LED status indicator Button light: white
LED status indicator APP control
Internet Connection
Type Spec. Standard Configuration Optional
WIFI Model M.2 E_Key
protocols IEEE 802.11 a, b/g, n, ac,ax (wifi 6)
Bluetooth Model M.2 E_Key
protocols Support Bluetooth 5.2
3G built-in NO
4G built-in NO
Ethernet LAN1 10M/100M/1000M/2.5Gbps  Adaptive
LAN2 10M/100M/1000M/2.5Gbps  Adaptive
interface
Type Spec. Standard Configuration Optional
USB USB2.0 NO
USB USB3.0 USB3.0 Type-A*4 5Gbps
TF Expanded External Storage NO
HDMI video output HDMI 2.0(Max 4K 60HZ)*1
DP 4K audio and video output DP 1.4b (Max 4K 60HZ)*1
VGA video output NO
RJ45 Gigabit Ethernet RJ45 *2
Type C data transmission Type_C *1 (full-featured) 10Gbps
POWER Power Button x1
ThunderboltTM4 thunder *2
DC IN Power Supply Input 5.5/2.1mm DC Jack x1
Audio-in/out Audio-in/out 3.5mm Phone Jack x1 (2-in-1 connector)
Antenna1 FPC Antenna WiFi 2.4+5G+BT x1
Antenna2 FPC Antenna WIFI 6.0
SIM micro SIM not support
Software Configuration
Type Spec. Standard Configuration Optional
OS Version Win11/Linux
Environment
Type Spec. Standard Configuration Optional
Environment Working Temperature 0~40℃
Memory Temperature -20~60℃
Humidity 90% @ 40 °C (no condensation)
Accessory
Type Spec. Standard Configuration Optional
Power Supply Desktop/Plug-in Input 100~240V 50/60Hz Output 19V/6.3A DC Header 5.5*2.1mm
IR Remote Control not support
VESA Mount support
Accreditation 3C certification China
SRRC China
CQC China
Energy Star US
Rohs China
BQB WW
TBT WW
HDMI WW
quality control report China
CE European
CSA certification Canada
ETL certification
FCC certification USA
GS certification German
UL certification USA
PCT certification Russian
TUV certification Deutschland
MPR II Swedish
TCO certification Swedish
