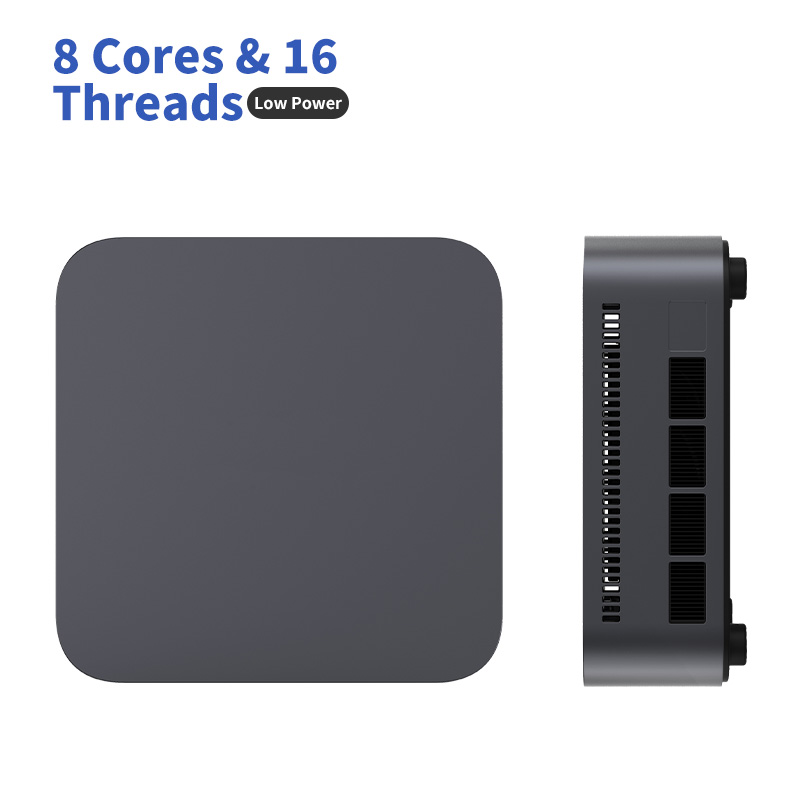

N3ES-3
N3ES-4

AMD Ryzen 7 Mini PC ZKN3ES- Efficient Cooling, Minimalist Design

Powered by the AMD Ryzen 7 6800U processor, the ZKN3ES Mini PC delivers powerful desktop-class performance in a compact package. Its all-copper heat pipe cooling system (Y+U layout) ensures up to 45W of heat dissipation while maintaining extremely low noise levels, while its intelligent airflow design keeps it cool even during intense tasks. Its minimalist design features a metallic finish and curved edges for a comfortable grip. Ideal for office work, remote meetings, and everyday use, it’s the perfect choice for users who value both efficiency and aesthetics.

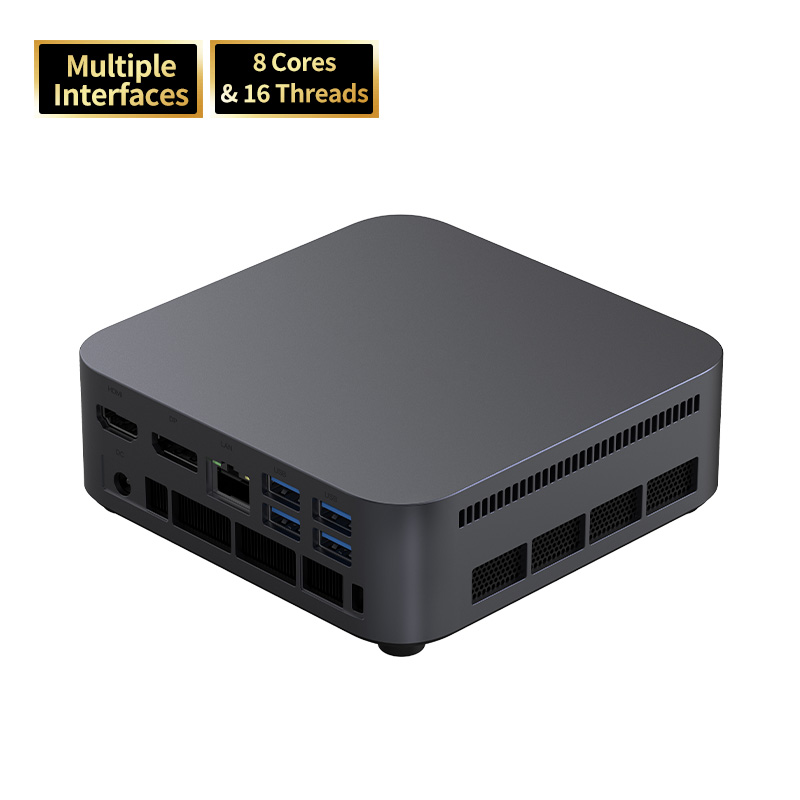

AMD Ryzen 7 Mini PC ZKN3ES Performance Advantages:

  • Processor: AMD Ryzen™ 7 6800U, embodying the “smaller, more powerful” philosophy.
  • Cooling System: All-copper heat pipes, Y+U layout, and intelligent airflow design.
  • Design: Minimalist aesthetic, metallic finish, and finely polished curved edges for a comfortable grip.
  • Versatility: Suitable for a variety of scenarios, including office work, remote meetings, and everyday computing tasks.
Click to consult

Description

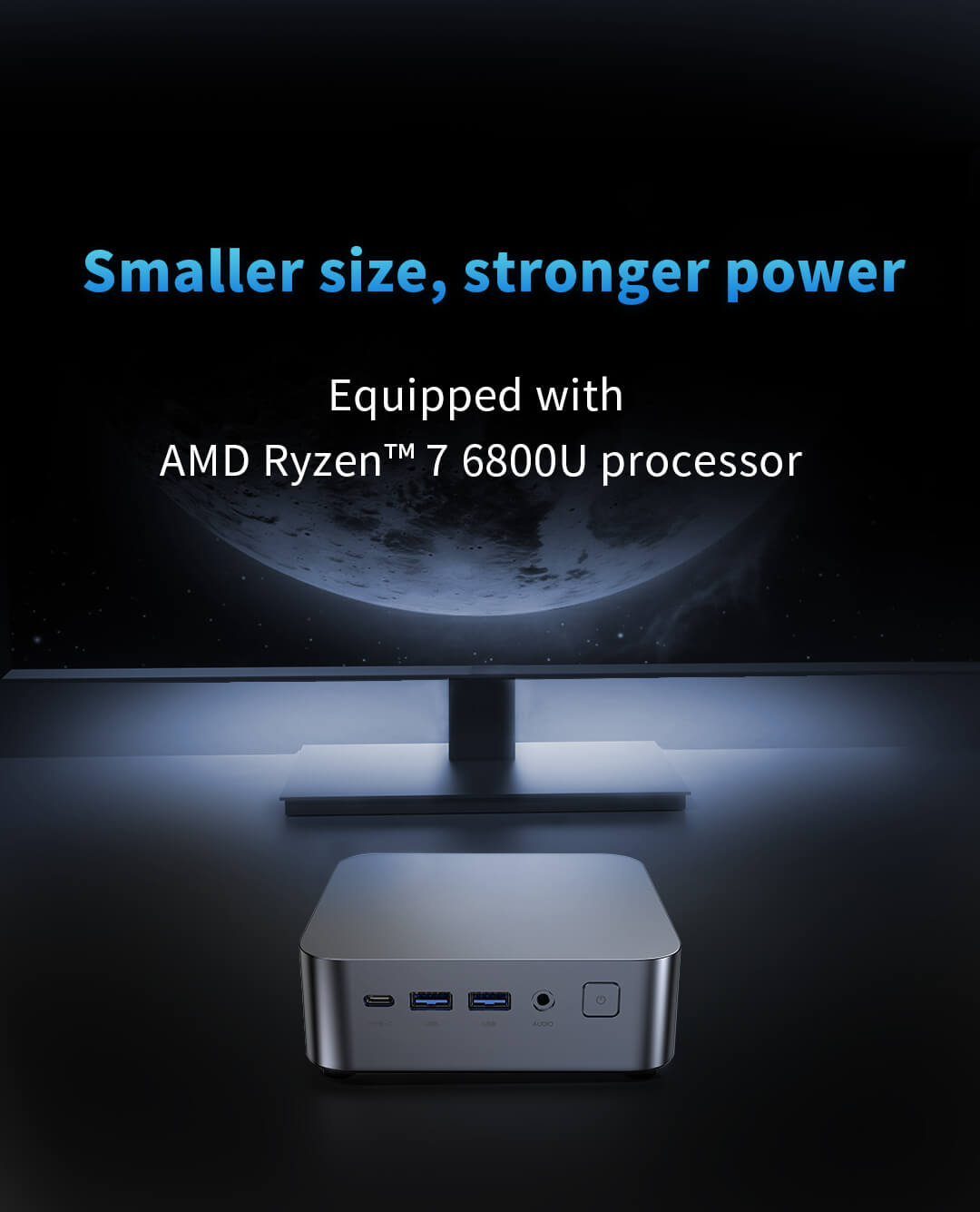

AMD Ryzen 7 Mini PC – Smaller, More Powerful

Powered by the AMD Ryzen 7 6800U processor, this mini PC delivers exceptional performance in a compact form factor, making it the perfect choice for users who value both performance and portability.

AMD Ryzen 7 Mini PC - Smaller, More Powerful

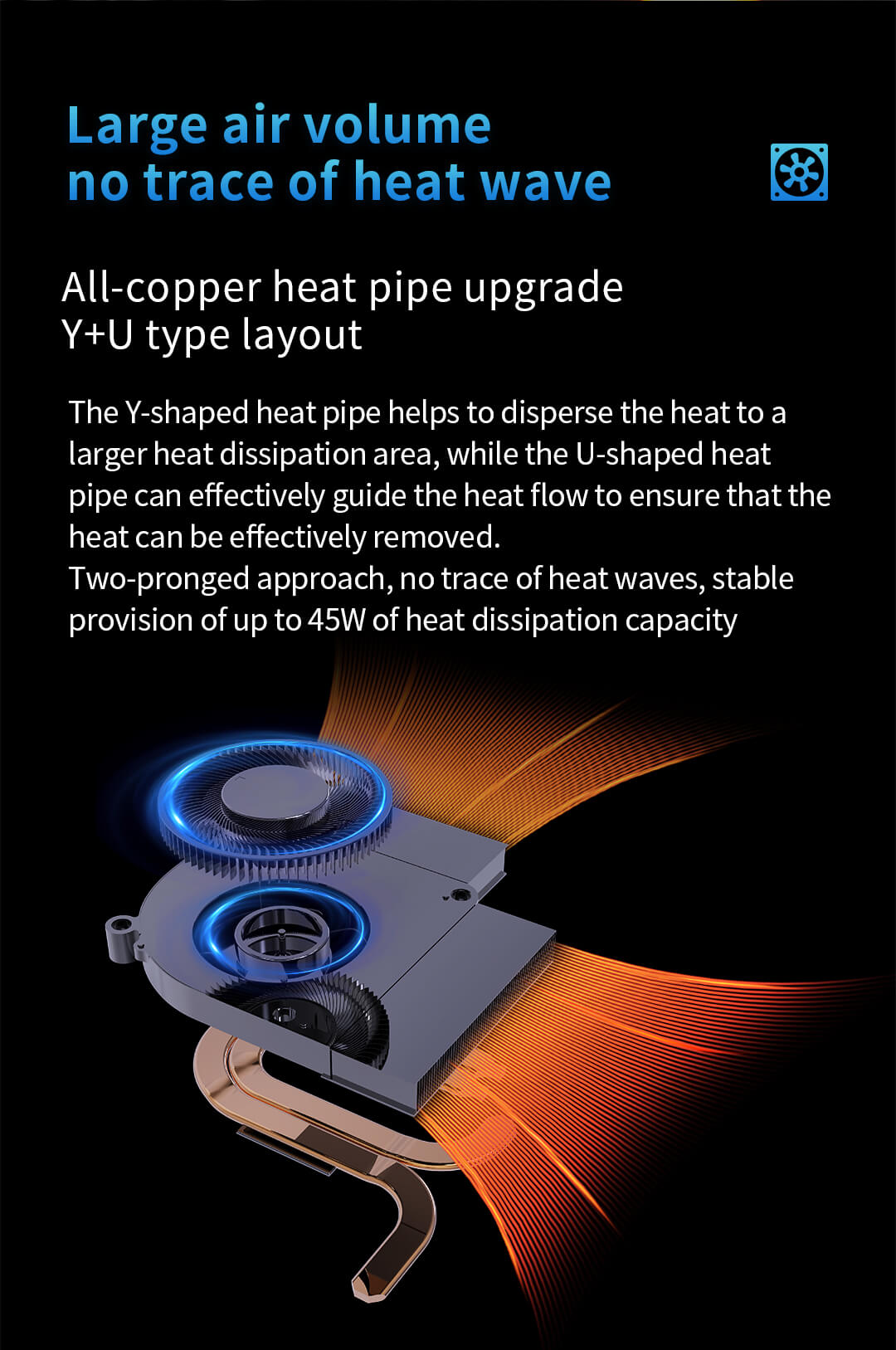

Full Copper Heatpipe Cooling – Y+U Layout, Up to 45W of Cooling Power

The AMD Ryzen 7 Mini PC ZKN3ES features an upgraded Y+U full copper heatpipe layout, delivering up to 45W of cooling power, ensuring stable performance while minimizing heat and noise.

Full Copper Heatpipe Cooling - Y+U Layout, Up to 45W of Cooling Power

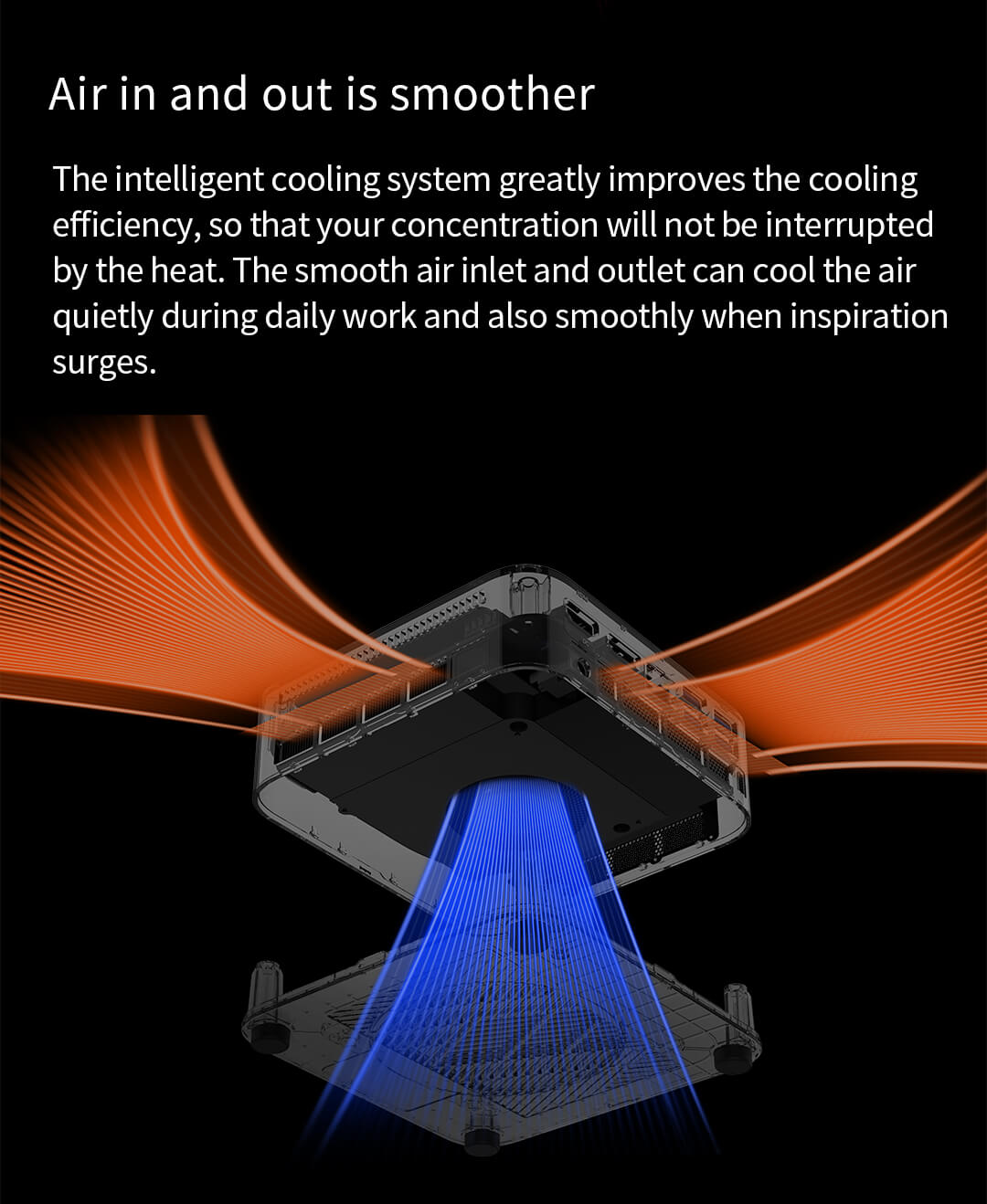

Intelligent Cooling System – Smooth Airflow, Quiet Operation

The intelligent cooling system optimizes air intake and outlets, significantly improving cooling efficiency while maintaining quiet operation, making it ideal for continuous work and entertainment.

Intelligent Cooling System - Smooth Airflow, Quiet Operation

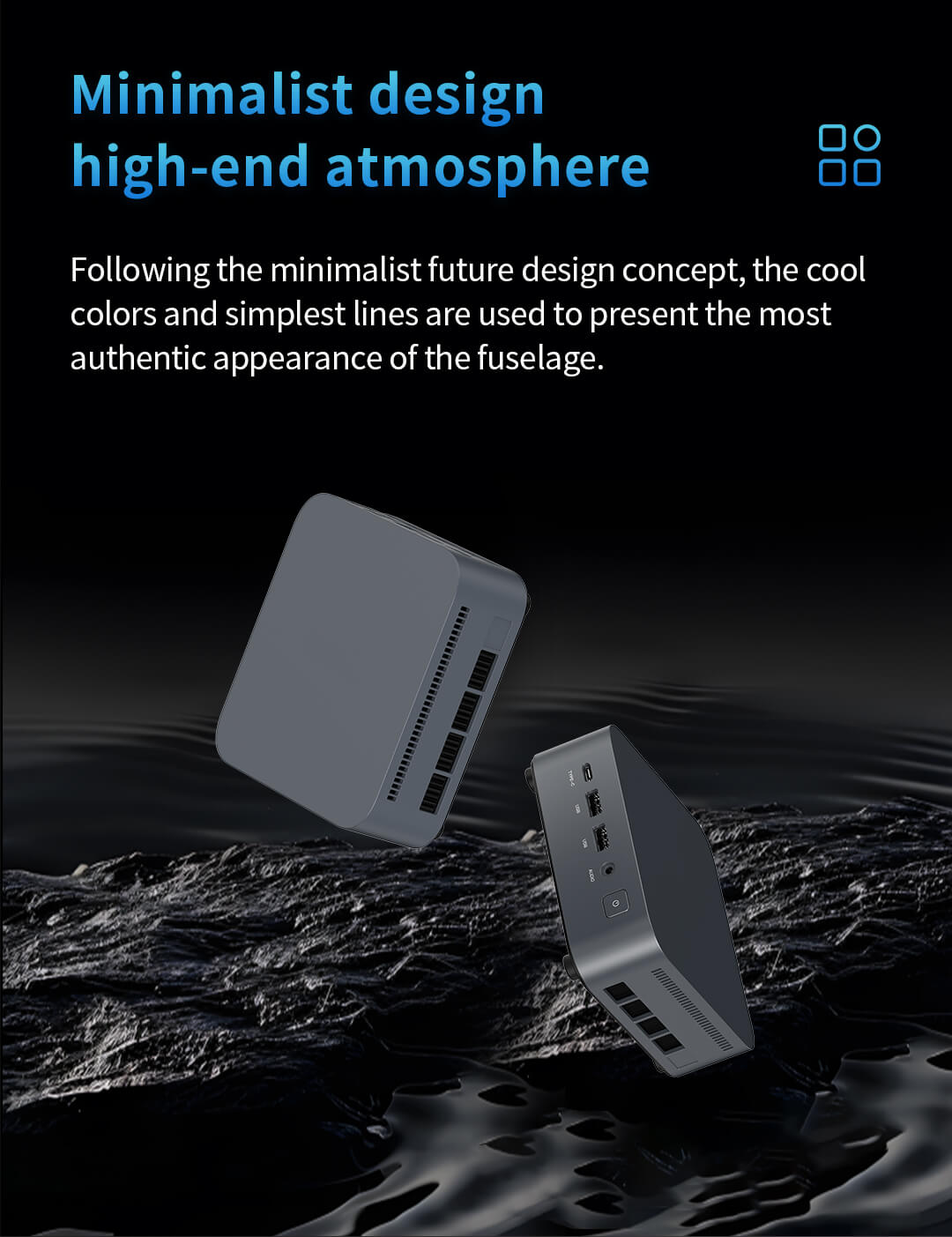

Minimalist Design Mini PC – Futuristic Aesthetics, Premium Charm

The ZKN3ES mini PC features a minimalist, futuristic design with sleek lines and cool colors, delivering a truly premium visual experience.

Minimalist Design Mini PC - Futuristic Aesthetics, Premium Charm

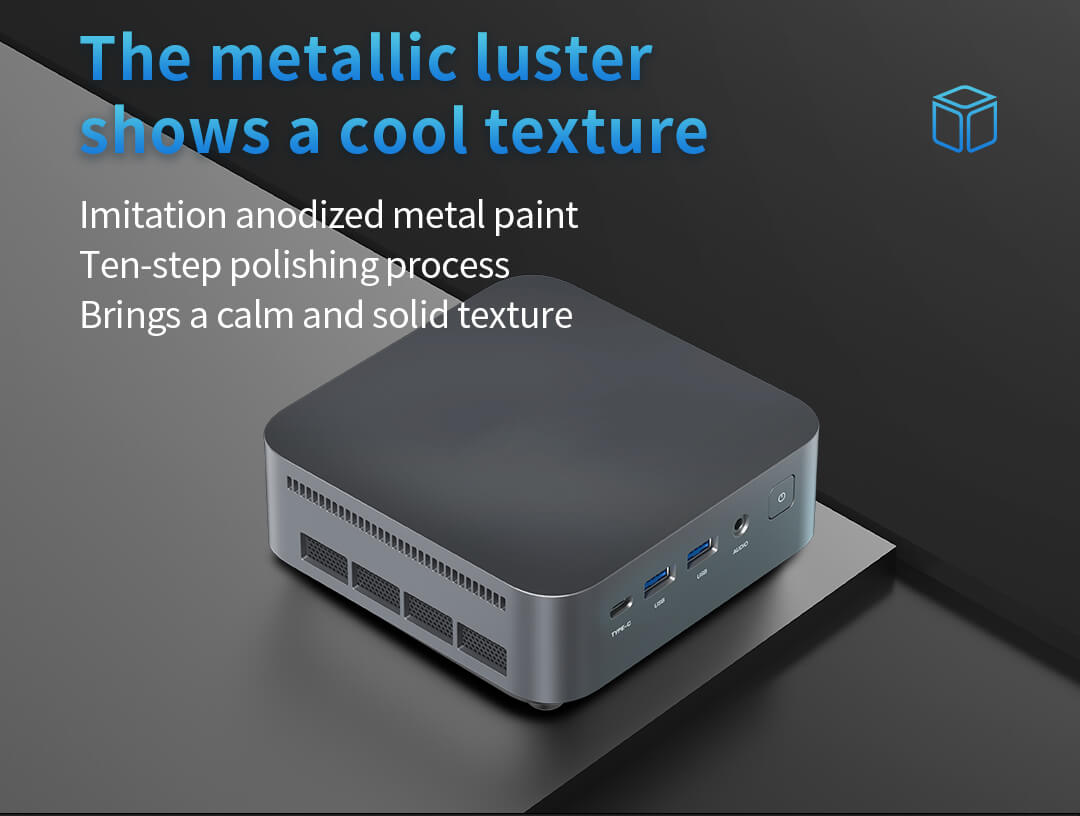

Metallic Texture Mini PC – Anodized Paint & Ten-Step Polishing

Adopting a simulated anodized metal paint finish and a ten-step polishing process, it boasts a long-lasting, cool metallic sheen, enhancing both style and durability.

Metallic Texture Mini PC - Anodized Paint & Ten-Step Polishin

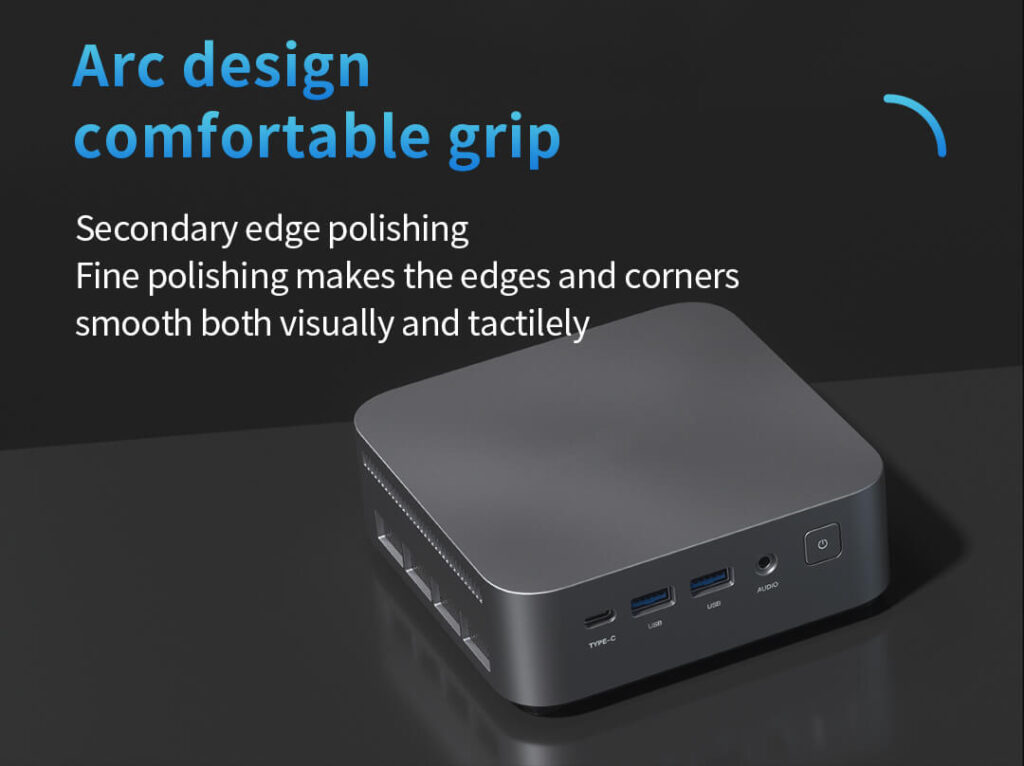

Curved Design – Polished Edges for a Comfortable Grip

The entire Mini PC’s curved design features a finely polished finish, ensuring smooth edges and corners for a comfortable grip.

Curved Design - Polished Edges for a Comfortable Grip

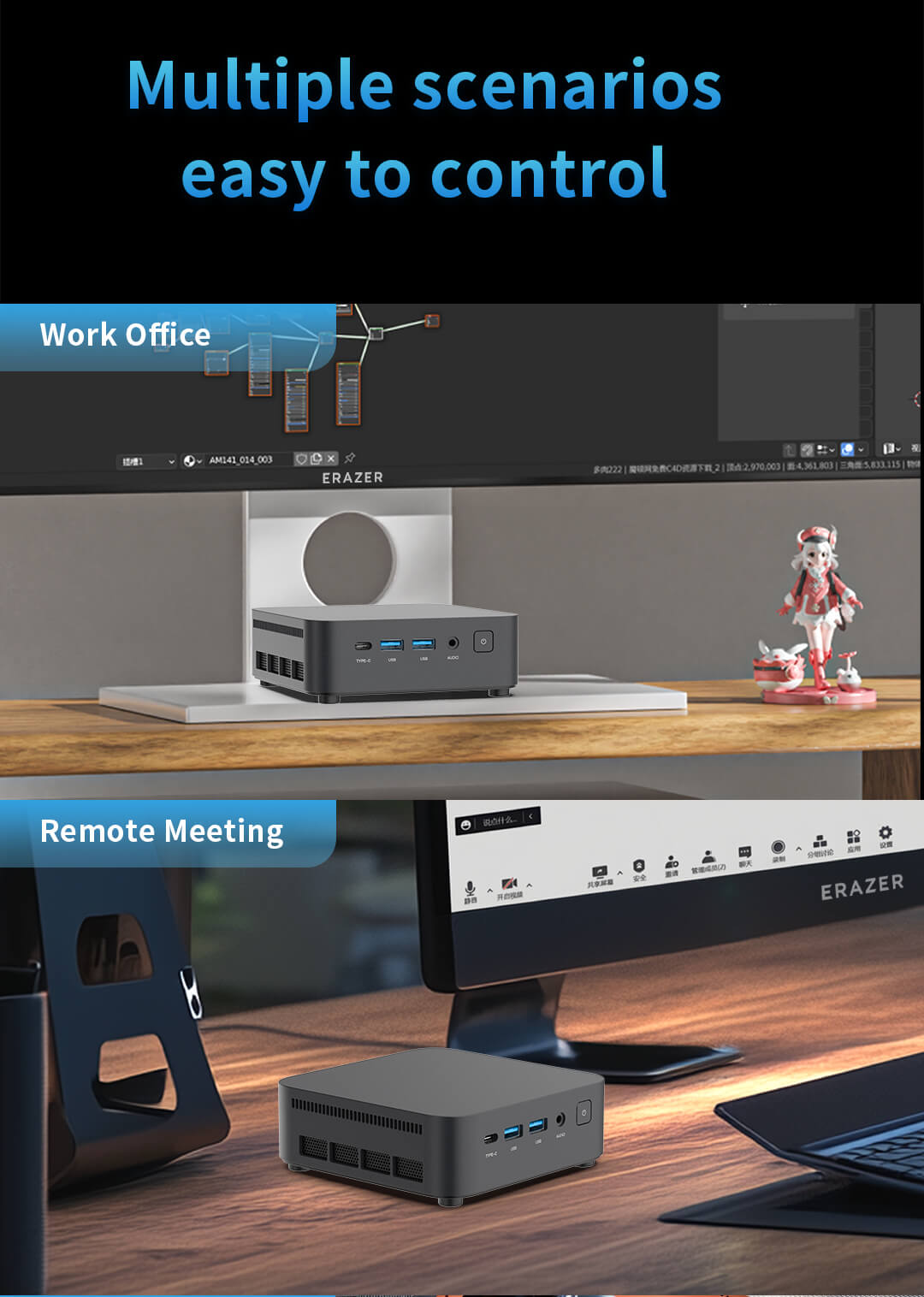

Multi-Scenario Applications – Suitable for Office and Remote Conferencing

The ZKN3ES is suitable for a variety of scenarios, from office work to remote conferencing, delivering the performance and versatility required for modern computing tasks.

Multi-Scenario Applications - Suitable for Office and Remote Conferencing

Specifications

AMD Ryzen 7 Mini PC ZKN3ES Specifications

Product Appearance
Type Spec. Standard Configuration Optional
Product Product Type Mini PC
Special /
Dimension 128*128*41.3mm
Case Material PC+ABS
Weight
PCBA PE-P6-01
System Hardware Configuration
Type Spec. Standard Configuration Optional
CPU Model AMD Ryzen™ 7 6800H 5500U/ 5700U/5800U
core 8 cores and 16 threads
cache L2: 8MB L3:16MB
base speed 3.2 GHz
Maximum speed 4.7 GHz
power （TDP） 54W 25/28W
GPU Model AMD Radeon™ 680M
core 12
speed 2200 MHz
resolution /
Memory Model SO-DIMM DDR4 *2
speed DDR4 3200 MT/s
Capacity Up to  32GB
Storage SSD Capacity SSD(Up to 2TB)
SSD Type M.2 2280 SATA&PCIE *1
M.2 2280 SATA *1
2.5 inch HHD /
TF card /
RTC BIOS Support Real-time clock, timed power-up
power-on BIOS Support Supports automatic boot after power-on
diskless network BIOS Support Support uefi diskless boot
TPM CPU Integrated TPM Supports TPM 2.0(integrated in CPU)
multi-screen video output HDMI*1+DP*1+TYPEC*1
LED status indicator S0: White, S3: White breathing, S5/G3: off
Internet Connection
Type Spec. Standard Configuration Optional
WIFI Model M.2 E_Key
protocols IEEE 802.11 a, b/g, n, ac，ax (wifi 6)
Bluetooth Model M.2 E_Key
protocols Support Bluetooth 5.2
3G built-in NO
4G built-in NO
Ethernet LAN1 10M/100M/1000M Adaptive
interface
Type Spec. Standard Configuration Optional
USB USB2.0 /
USB USB2.0 Expansion /
USB USB3.0 USB3.1 Type-A*6
USB USB3.0 Expansion /
TF Expanded External Storage /
HDMI video output HDMI 2.0*1
DP 4K audio and video output DP 1.4B*1
VGA video output /
COM serial port /
RJ45 Gigabit Ethernet 10/100/1000M*1
LVDS screen interface /
Backlight Voltage /
Type C data transmission TYPEC*1 Data: 10Gbps/Display(4K 60Hz)
panel switch Power Button *1
DC IN Power Supply Input DC Jack x1  5.5/2.1mm
Power Supply Input /
Audio-in/out Audio-out /
Audio-in / DMIC Optional
Audio-in/out 3.5mm Phone Jackx1（Audio Jack）
speaker output / Speaker optional
UART serial port serial output /
serial output /
Antenna FPC Antenna 1 WiFi 2.4+5G+BT *1
FPC Antenna 2 WIFI 6.0
SIM micro SIM not support
Software Configuration
Type Spec. Standard Configuration Optional
OS Version Win11/Linux
Environment
Type Spec. Standard Configuration Optional
Environment Working Temperature 0~45℃
Memory Temperature -20~70℃
Humidity 5%-95% @ 40 °C (no condensation)
ΔT MAX:  23 °C
Accessory
Type Spec. Standard Configuration Optional
Power Supply Desktop/Plug-in Input 100~240V 50/60Hz Output 19V/3.42A DC Header 5.5*2.1mm
IR Remote Control not support
VESA Mount support
