ZKX96Q Rockchip TV Box – 4K Android 10 System, Allwinner H313 Processor, 4K 60fps

The X96Q TV Box delivers a premium streaming experience, supporting 4K 60fps resolution, HEVC H.265 decoding, and advanced visual enhancement features such as 3D noise reduction, image stabilization, and HDR to SDR conversion. It runs Android 10 with dynamic partitioning technology for smooth operation, ample storage space, and access to thousands of applications. The Allwinner H313 CPU and Mali G31 GPU ensure smooth, lag-free gaming and media playback. Equipped with HDMI and AV interfaces, it’s compatible with both modern and older LCD TVs and supports 2.4GHz WiFi for seamless connectivity.

X96Q Rockchip TV Box Performance Advantages:

  • Visuals and Video: Natively supports 4K 60fps, HEVC H.265 decoding, 3D noise reduction, and image stabilization.
  • System: Runs on Android 10 with dynamic partitioning technology for optimized smoothness.
  • Performance: Utilizes an Allwinner H313 CPU (Cortex A53) and Mali G31 GPU (supports Vulkan and OpenGL ES3.2).
  • Connectivity and Compatibility: Equipped with HDMI and AV interfaces for connection to LCD/older TVs, and supports 2.4GHz WiFi.
  • Design and Installation: Supports wall mounting for easy integration into various home entertainment systems.

Description

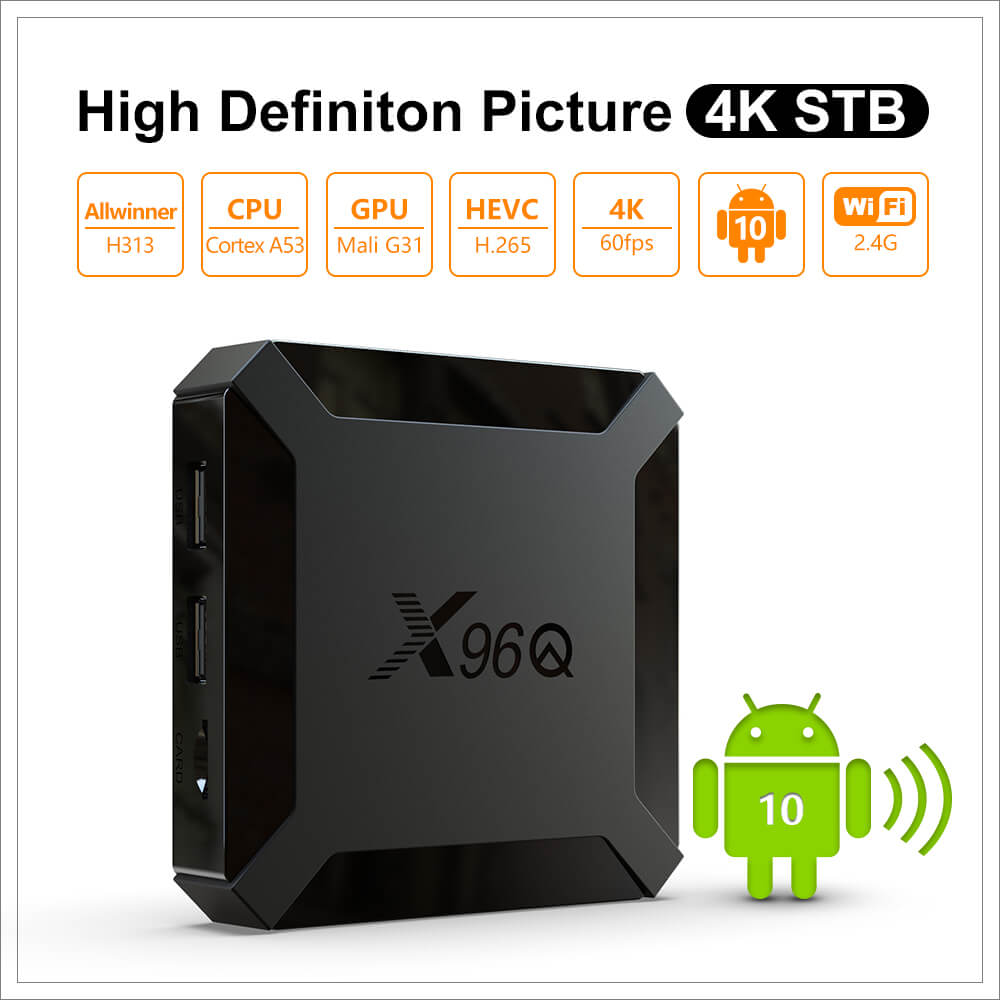

Android 10, Allwinner H313 CPU, Mali G31 GPU, 4K 60fps, Compact and Portable

The X96Q TV Box is a powerful choice for home entertainment, supporting 4K 60fps resolution and HEVC H.265 decoding for an ultra-smooth streaming experience. It features an Allwinner H313 CPU (Cortex-A53) and a Mali-G31 GPU (supporting Vulkan and OpenGL ES 3.2), ensuring smooth gameplay for movies, games, and applications without lag. Running Android 10, it boasts a user-friendly interface and a stable and reliable 2.4G WiFi connection. Its compact design allows it to easily integrate with various media devices.

Android 10, Allwinner H313 CPU, Mali G31 GPU

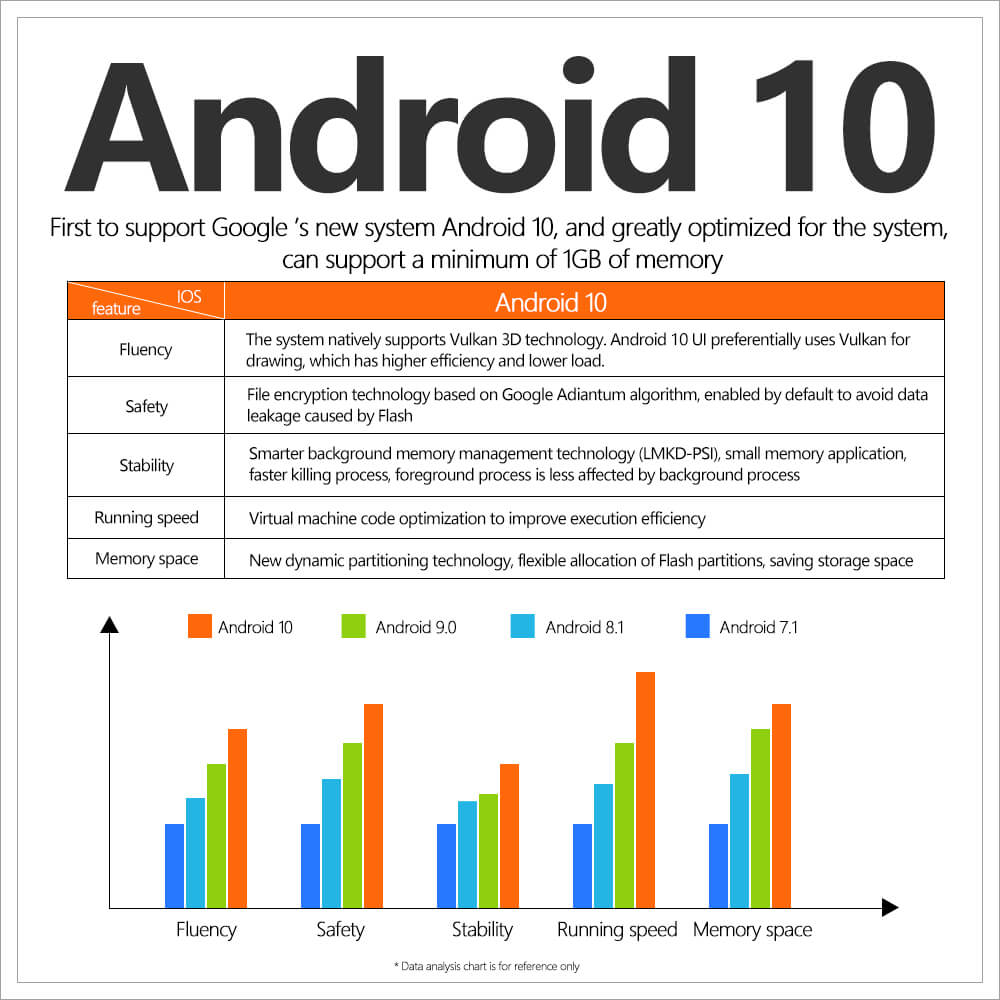

Android 10 TV Box – Dynamic Partitioning: Smoothness, Security, Stability, and More

The ZKX96Q TV Box runs Android 10 and features advanced dynamic partitioning technology, resulting in significant improvements in smoothness (Vulkan 3D rendering delivers a smoother UI), security (Google Americanum encryption), stability (background memory management), speed, and storage space. This enables its performance to far surpass that of older Android systems, ensuring a smooth and reliable streaming experience.

Android 10 TV Box - Dynamic Partitioning Smoothness, Security, Stability, and More

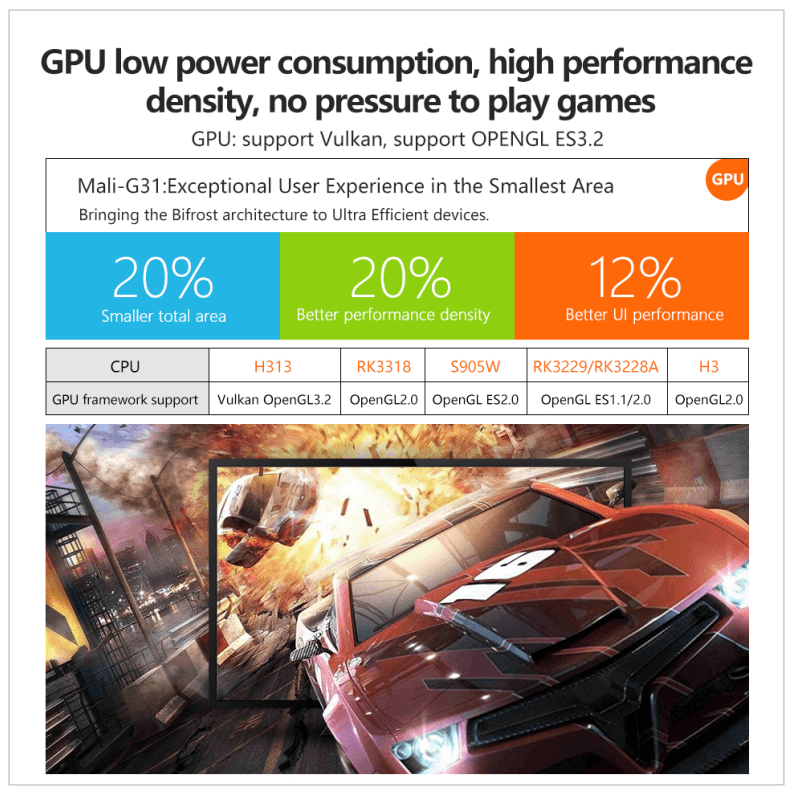

Mali G31 GPU TV Box: Low Power Consumption, High Performance Density

The ZKX96Q TV Box is equipped with a Mali G31 GPU, delivering superior performance. Its chip area is 20% smaller than comparable products, performance density is increased by 20%, and UI performance is improved by 12%. Supporting Vulkan and OpenGL ES3.2, it can easily handle demanding games and 4K media while consuming extremely low power.

Mali G31 GPU TV Box Low Power Consumption, High Performance Density (1)



3D Noise-Canceling TV Box for Clarity and Detail

The X96Q TV box’s 3D noise-canceling technology delivers cinematic clarity. It eliminates visual noise and graininess, transforming blurry images into sharp, detailed ones. Whether watching movies or live sports, every frame is pristine and immersive.

3D Noise-Canceling TV Box for Clarity and Detail

Image Stabilization TV Box for Stable and Smooth Viewing of Fast-Paced Content

Its image stabilization technology eliminates screen shake. It effectively eliminates screen jitter and motion blur, providing a stable and smooth viewing experience that perfectly showcases action movies, live sports, and fast-paced games.

Image Stabilization TV Box for Stable and Smooth Viewing of Fast-Paced Content

HDR to SDR TV Box with SmartColor Optimization Technology for Vibrant HDR Content

Utilizing SmartColor™ technology, it converts HDR content to SDR format, optimizing dynamic curves to enhance the color performance of HDR content. This results in brighter, more vivid images with higher contrast, far surpassing other models that render HDR content dull and lifeless. Enjoy every detail of your favorite movies and TV shows.

HDR to SDR TV Box with SmartColor Optimization Technology for Vibrant HDR Content

More storage, faster response, and more stable app performance

Revolutionizing storage and performance with Android 10 Dynamic Partitioning technology. It offers more user storage, faster and more secure response, 20% memory savings, and stable app performance, allowing you to install all your favorite streaming, gaming, and office apps without worry.

storage

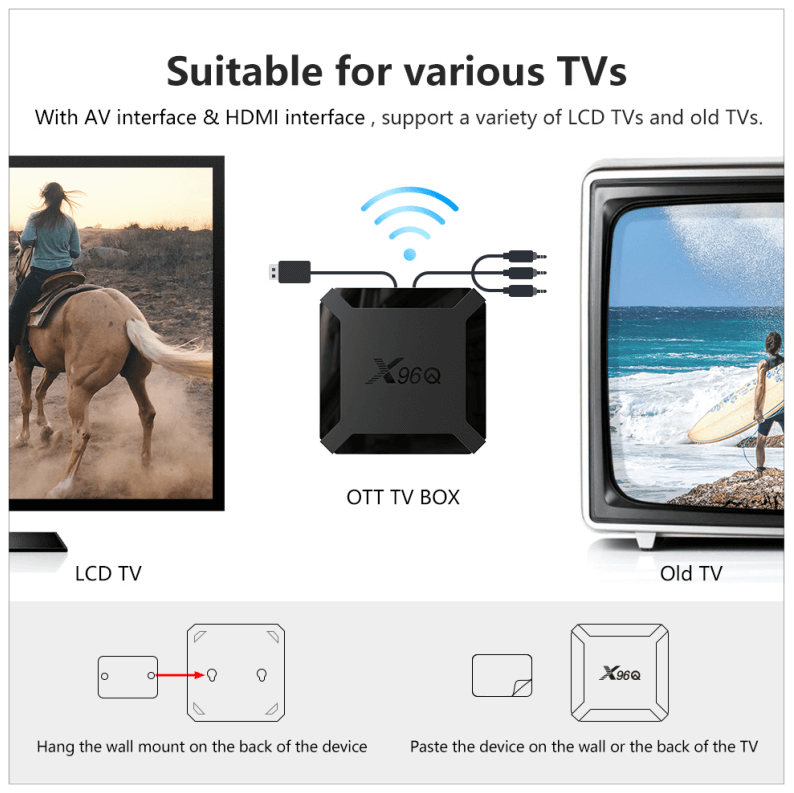

Compatible with LCD and older TVs, supports wall mounting

The X96Q TV box features a universally compatible design with HDMI and AV interfaces, allowing it to work with both modern LCD TVs and older CRT TVs. Its compact wall-mount design allows you to easily integrate it into any setup, whether you’re upgrading an old TV or enhancing a new one. Enjoy 4K streaming on any display device in your home.

Compatible with LCD and older TVs, supports wall mounting (1)

Specifications

ZKX96Q Rockchip TV Box Specifications

X96Q (H313)
CPU Allwinner H313 Quad Core ARM Cortex A53
GPU G31 OPenGL3.2
Memory DDR3:1GB (Option: 2GB)
Flash eMMC:8GB  (Option:16GB )
WiFi IEEE 802.11 b/g/n
Moudle Plastic : Black  Color
I/O 1*HDMI 4K*2K UHD Output, HDMI 2.0A
1*AV OUT 480i/576i standard definition output
2*USB 1* USB Host Port ,1*USB Device
1*IR Reciver Remote Reciver Connect
1*RJ45 Ethernet Interface
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2A;LED indicator,Working :Blue; Standby:Red
Software
OS Android 10.0
Video   Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders
  Support multi-video decoder up to 4K@60fps
  Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
  Video/Picture Decoding
–  VP9 Profile-2 up to 4K@30fps
–  H.265 Main10@L5.1 up to 4K@60fps
–  AVS2 JiZhun 10bit Profile up to 4K@60fps
–  H.264 BP/MP/HP@L4.2 up to 4K@30fps
–  H.263 BP up to 1080P@60fps
–  MPEG-4 SP/ASP@L5 up to 1080P@60fps
–  MPEG-2 MP/HL up to 1080P@60fps
–  MPEG-1 MP/HL up to 1080P@60fps
–  Xvid up to 1080P@60fps
–  Sorenson Spark up to 1080P@60fps
–  VP8 up to 1080P@60fps
–  AVS/AVS+ JiZhun Profile up to 1080P@60fps
–  WMV9/VC1 SP/MP/AP up to 1080P@60fps
–  JPEG HFIF file format up to 45M PPS
–  Multiple language and multiple format subtitle video support
–  MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
–  Supports JPEG thumbnail, scaling, rotation, and transition effects
–  Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
• Two DAC channels
• Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR)
• One Audio HUB, supporting internal mixing function
• Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier)
• Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode
• I2S mode supports 8 channels, and 32-bit/192kbit sample rate
• I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate
• One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs
• Integrated digital microphone(DMIC), supporting a maximum 8 digital PDM microphones
Image HD JPEG、BMP、GIF、PNG、TIF
Language English, French, German, Spanish, Italian, multilingual languages
Appliactions
Online Browse all video websites, support Netflix, Hulu, Flixster, YouTube, etc.
Apps Apps download freely form android market、amazon app store etc.
Medium Local Media playback supports HDD, USB disk, and TF Card.
Talk online Support  SKYPE video  call , MSN , Facebook, Twitter, QQ  etc
Others Support Email, office suit, etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing Product dimension 88.4*88.4*18.6(mm)
Qty per unit packing 1pcs
Unit packing: (LxWxH) 170*115*55(mm)
Unit packing (G.W.) 0.35Kg
Qty per export carton 20PCS
Export carton (WxHxL) 370*290*240 (mm)
Export carton (G.W.) 7.5Kg
Accessories :
1、HDMI cable  *1
2、IR Remote *1
3、User Manual *1
4、Package box  *1
5、Power adapter  *1
